System Specifications

TENSIONER PULLEY ASSEMBLY TORQUE

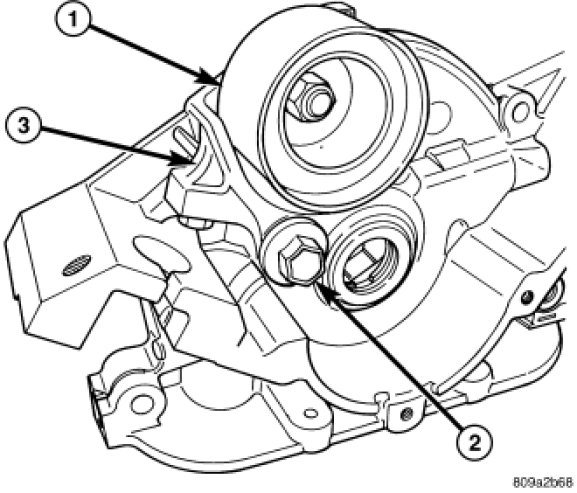

Install the timing belt tensioner pulley (1) assembly. Tighten the pivot bolt (2) to 61 Nm (45 ft. lbs.).

TIMING BELT COVER





Install rear timing belt cover. Tighten bolts to the following specified torque:
- M10-54 Nm (40 ft. lbs.)
- M8-28 Nm (20 ft. lbs.)
- M6-12 Nm (105 in. lbs.)
