Removal

2.0, 2.4L





1. Disconnect the negative battery cable.

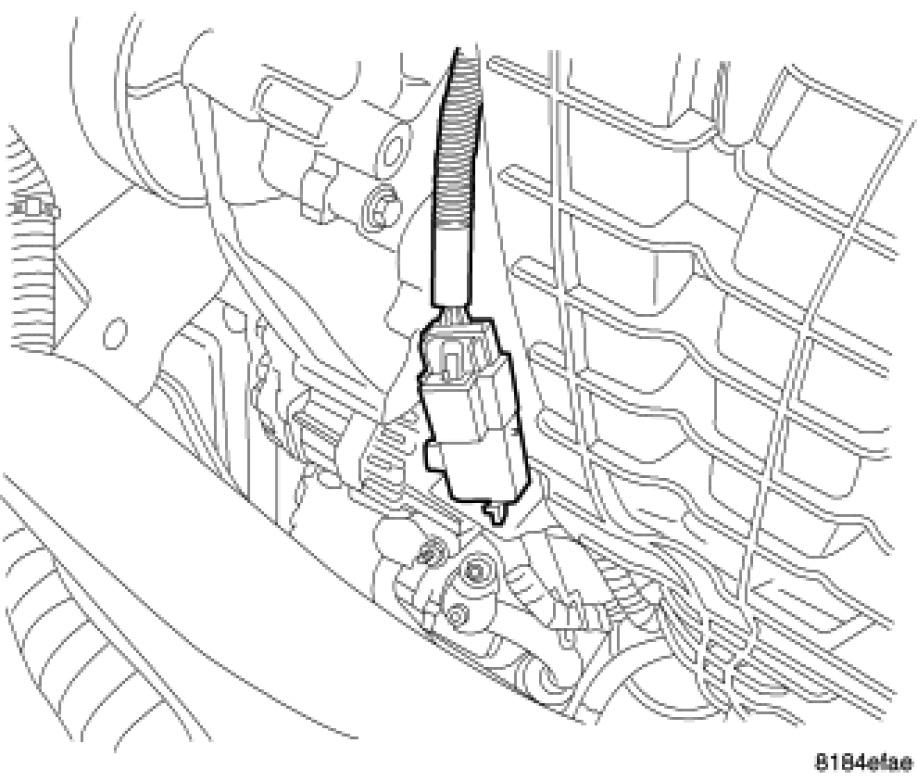

2. Disconnect electrical connector from manifold absolute pressure (MAP) sensor.
3. Remove screw from MAP sensor.

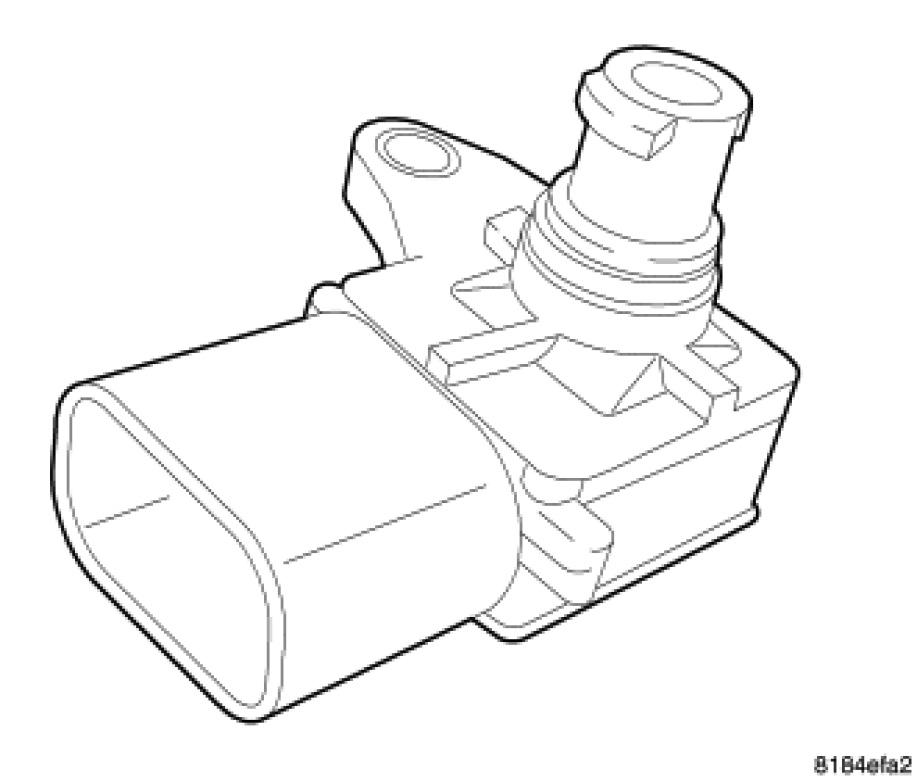

4. Remove MAP sensor.
