Manifold Pressure/Vacuum Sensor: Locations

Component ID: 405

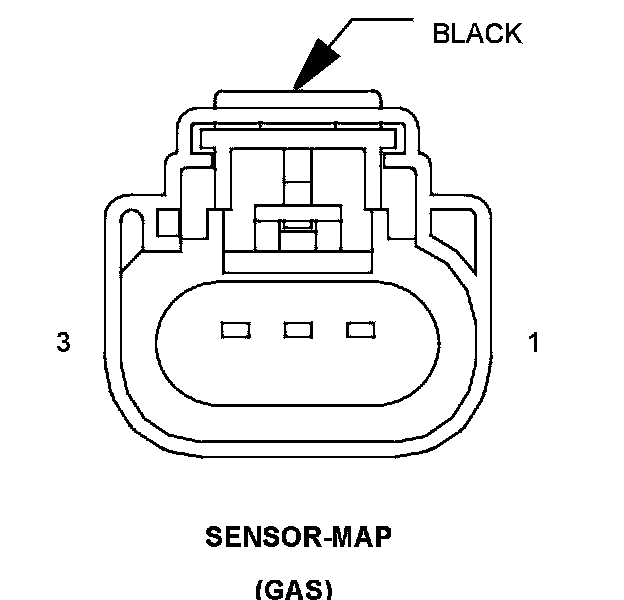

Component : SENSOR-MAP

Connector:
Name : SENSOR-MAP
Color : BLACK
# of pins : 3
Qualifier : (GAS)




Pin Circuit Description
1 K1 20VT/DG MAP SIGNAL
2 K900 20DB/LB SENSOR GROUND
3 F856 20YL/PK 5 VOLT SUPPLY

Component Location - 22




Component Location - 26




Component Location - 30
