Circuit Schematic

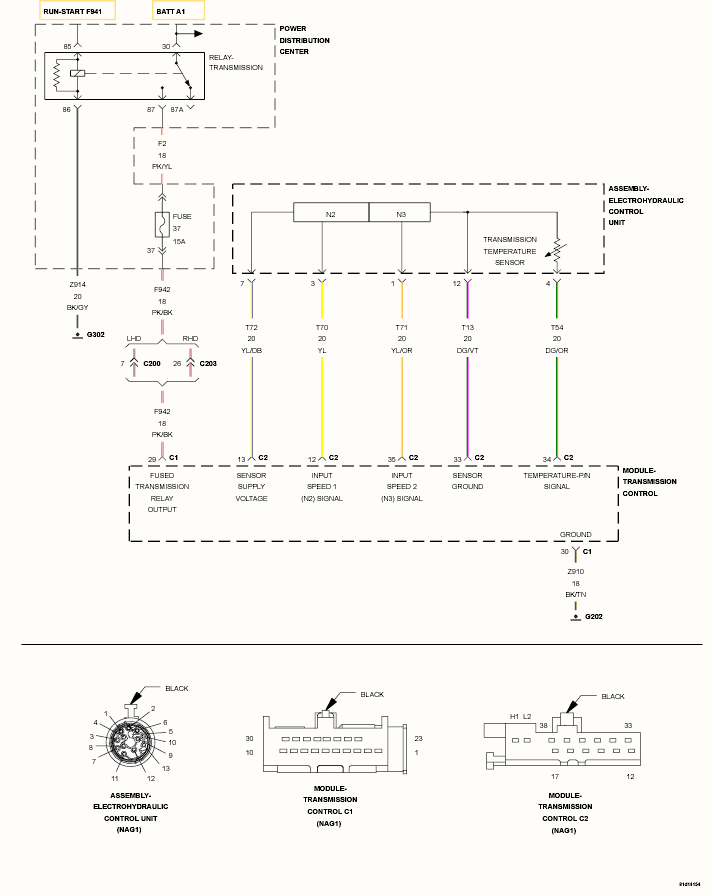

Fig 1: Fused Transmission Relay Output/Input Speed Sensor Circuit Schematic

GC0097934

Courtesy of CHRYSLER LLC
