Installation

6.1L

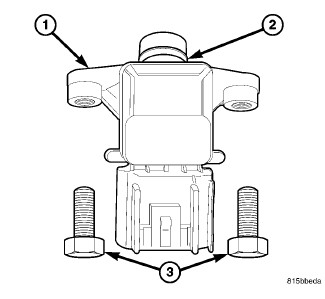

1. Clean MAP sensor mounting hole at rear of intake manifold.
2. Check MAP sensor o-ring seal (2) for cuts or tears.
3. Position sensor (1) into intake manifold.
4. Install two sensor mounting bolts (3).
5. Connect electrical connector to sensor.
