Adaptive Cruise Control Module - Removal

REMOVAL





1. Disconnect negative battery cable.
2. Remove air dam panels.

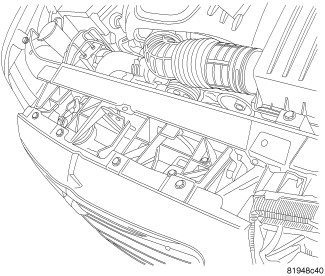

3. Air dam panels removed.





4. Remove 3 mounting bolts.
5. Remove module/sensor assembly.





6. Remove wiring harness clips from bracket and radiator side shield.

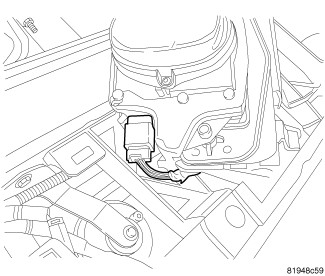

7. Disconnect electrical connector.
8. Remove assembly.
