Control Module, Transfer Case

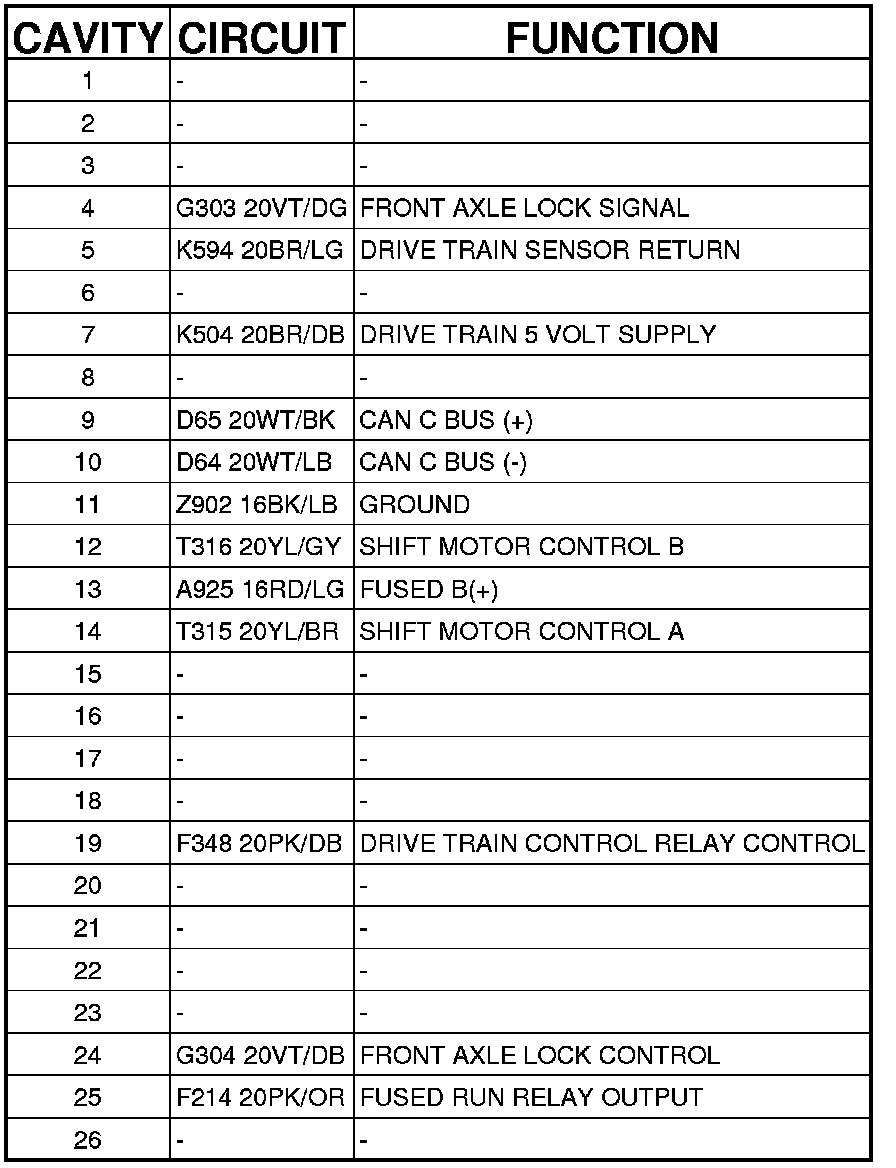

Connector (AWD) - (HEADLAMP AND DASH) 26 WAY

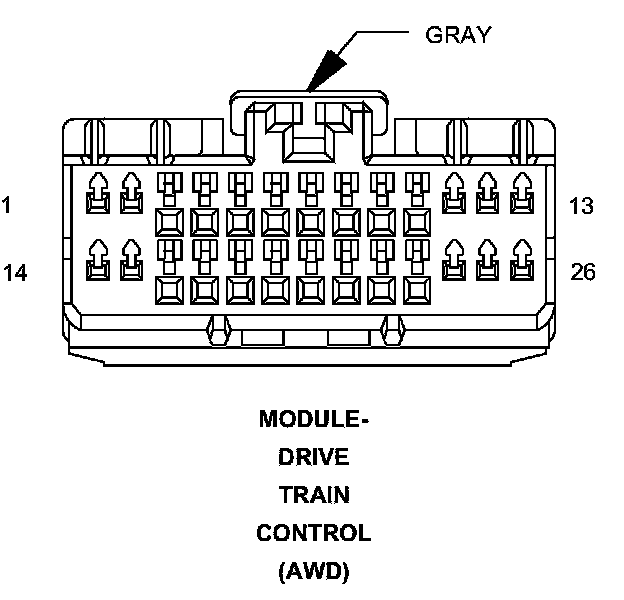

MODULE-DRIVE TRAIN CONTROL (AWD) - (HEADLAMP AND DASH) 26 WAY
