Steering Control Module C1 (Instrument Panel) 14 Way

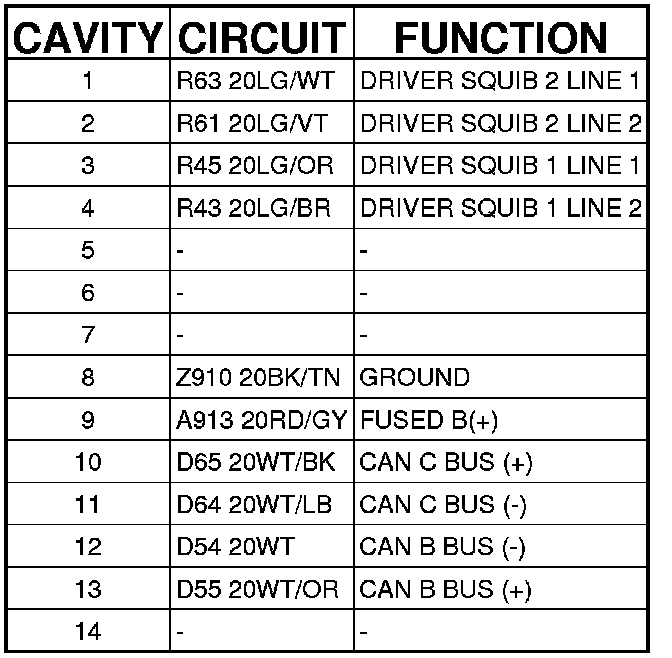

Connector C1 - (INSTRUMENT PANEL) 14 WAY

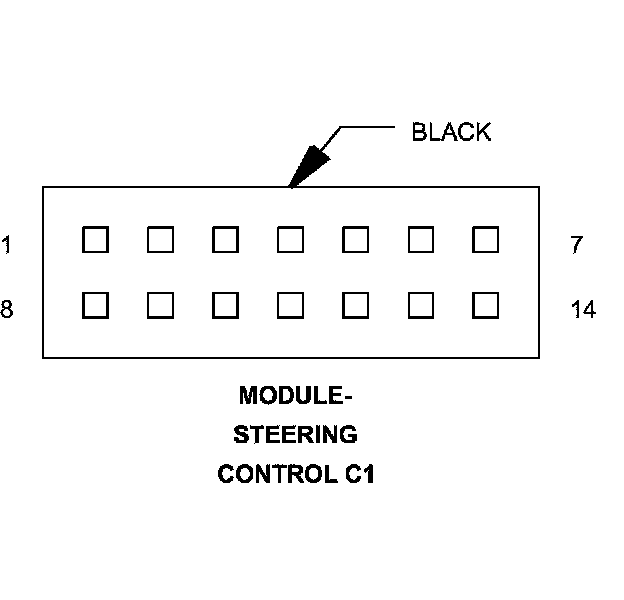

MODULE-STEERING CONTROL - (INSTRUMENT PANEL) 14 WAY
