Engine Torque Specifications

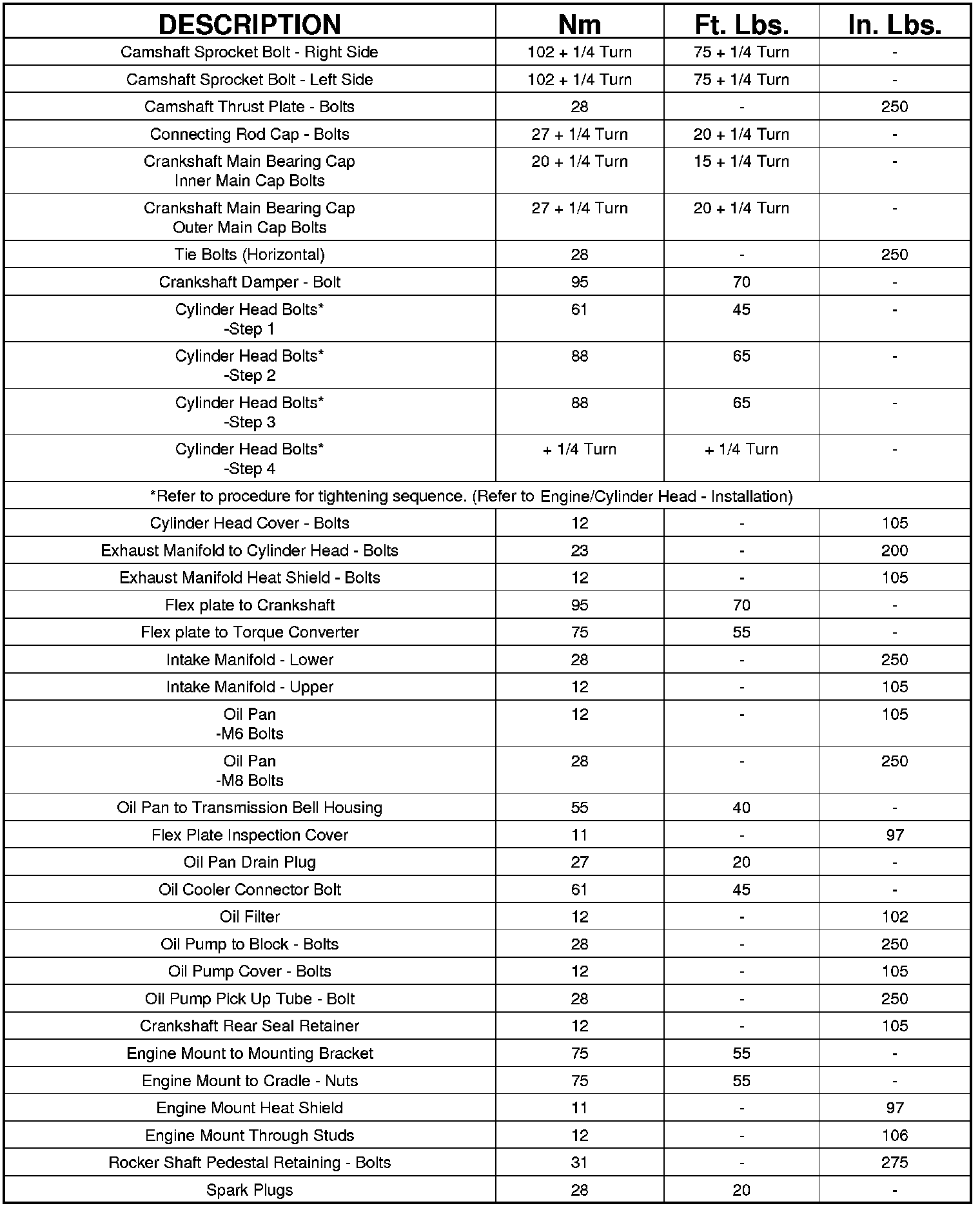

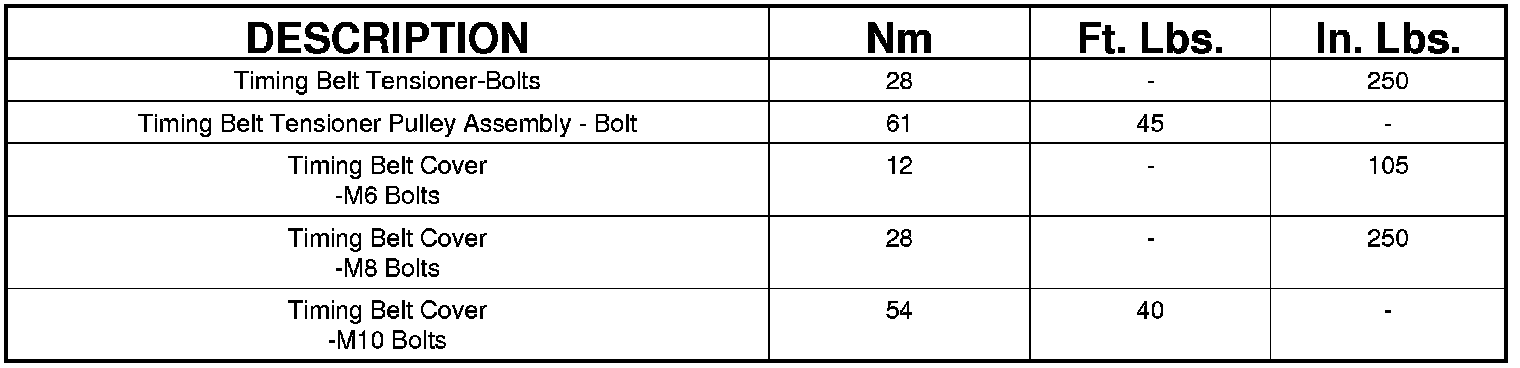

TORQUE - 3.5L

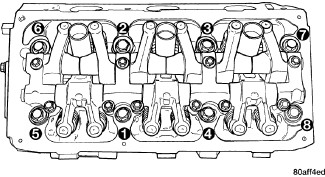

Cylinder Head Sequence
Head Bolt Reuse/Replace
CAUTION: The cylinder head bolts are tightened using a torque plus angle procedure. The bolts must be examined BEFORE reuse. If the threads are necked down the bolts must be replaced.

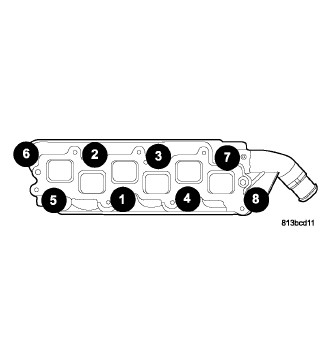

Intake Manifold Sequence
Water Pump Torque
Water Pump - Bolts 12 Nm (105 in. lbs)
