Electronic Brake Control Module

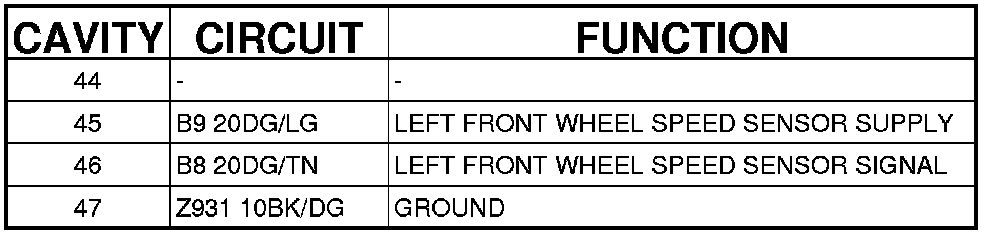

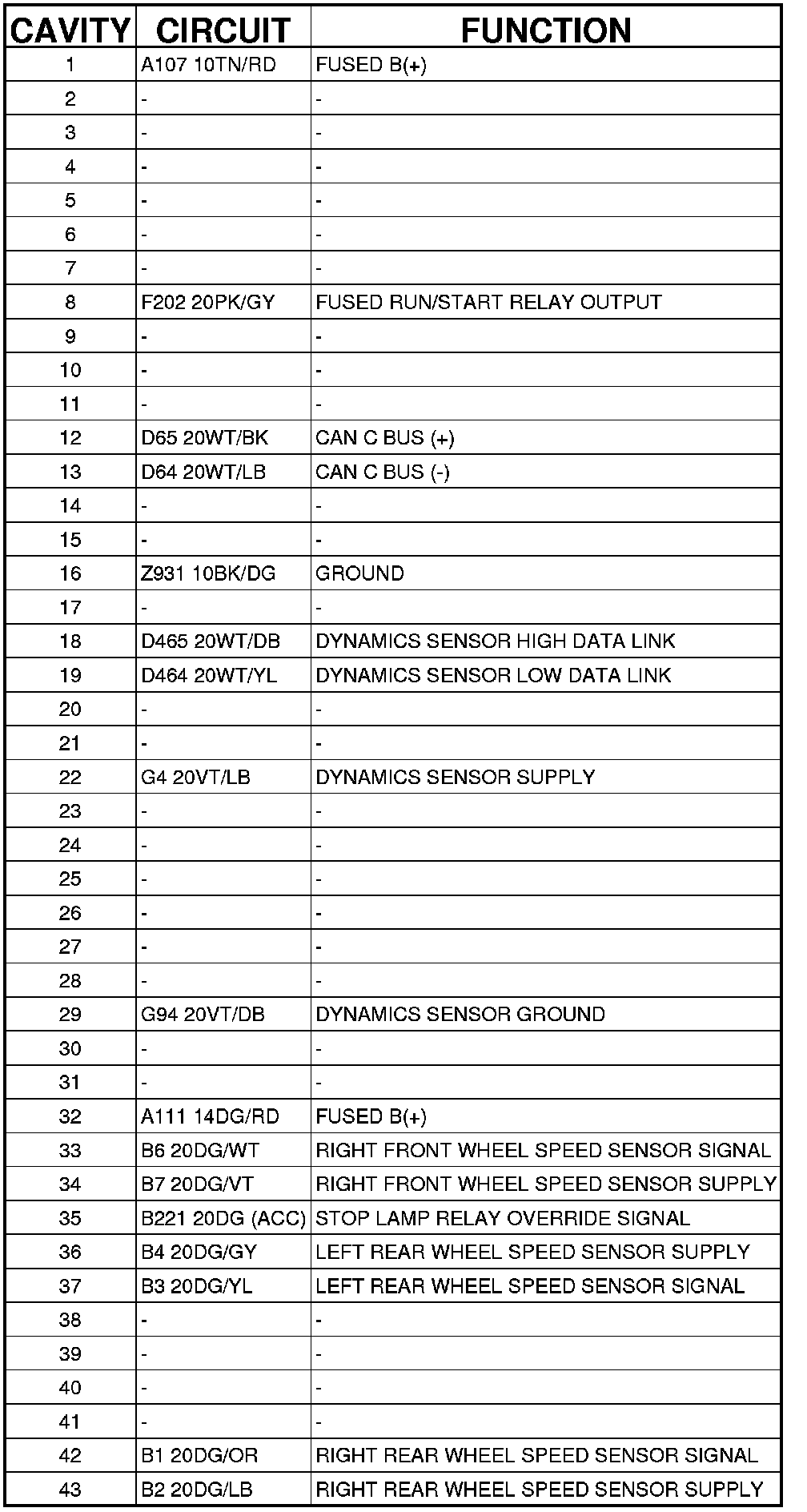

Connector (ESP) - (HEADLAMP AND DASH) 47 WAY

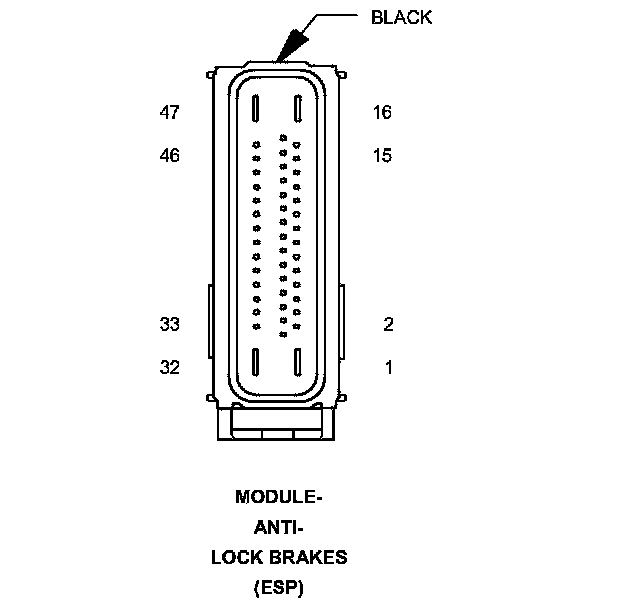

MODULE-ANTI-LOCK BRAKES (ESP) - (HEADLAMP AND DASH) 47 WAY
