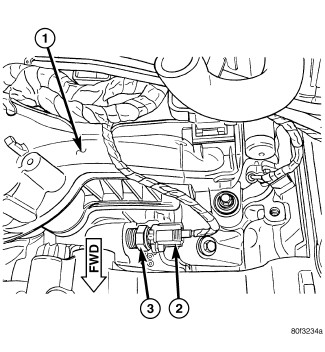

Engine Coolant Temperature Sensor - Installation

5.7L/6.1L





1. Apply thread sealant to sensor threads.
2. Install ECT sensor (3) to engine.
3. Tighten sensor to 11 Nm (98 in. lbs.).
4. Connect electrical connector (2) to ECT sensor (3).
5. Fill the cooling system Service and Repair.
