Engine Torque Specifications

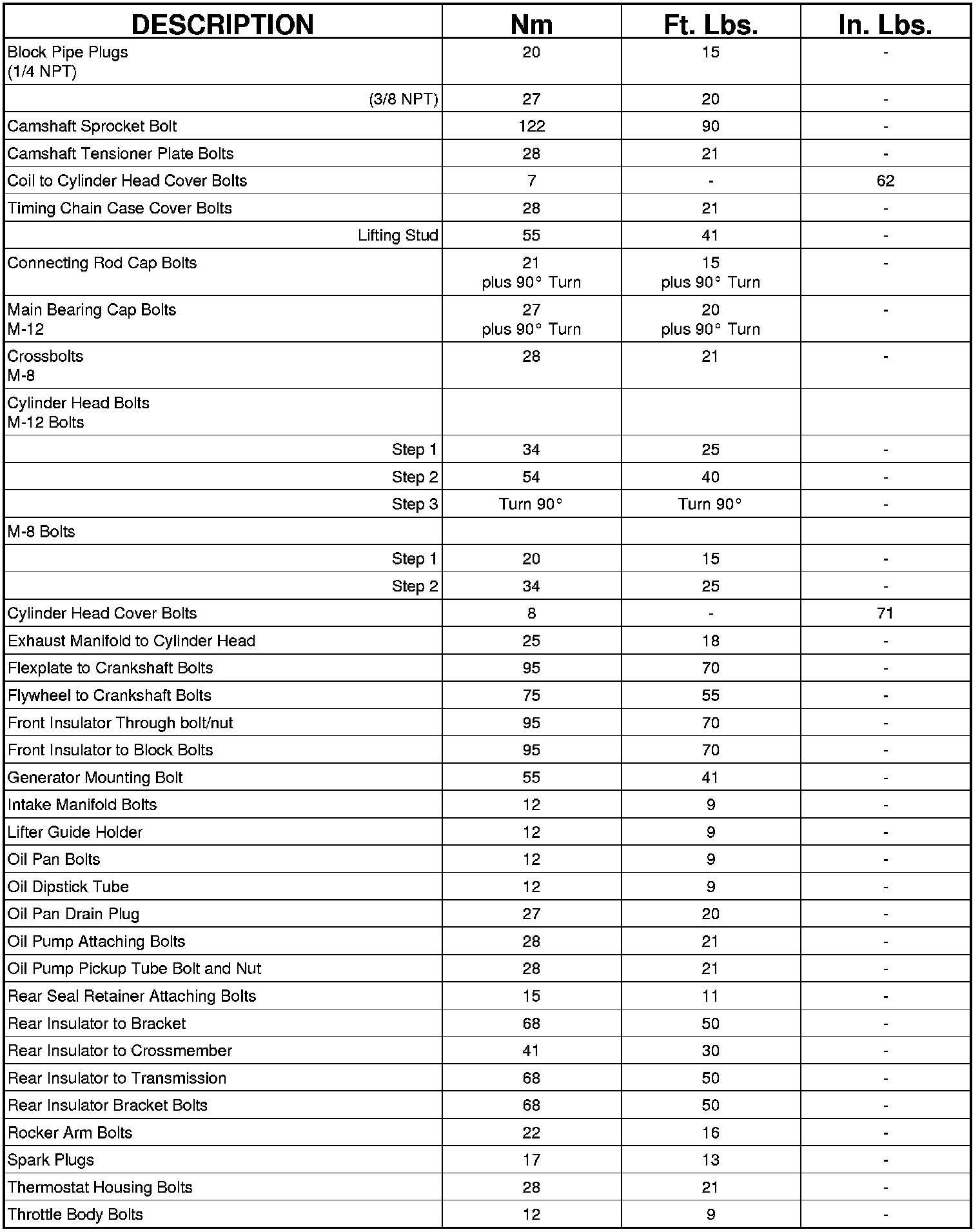

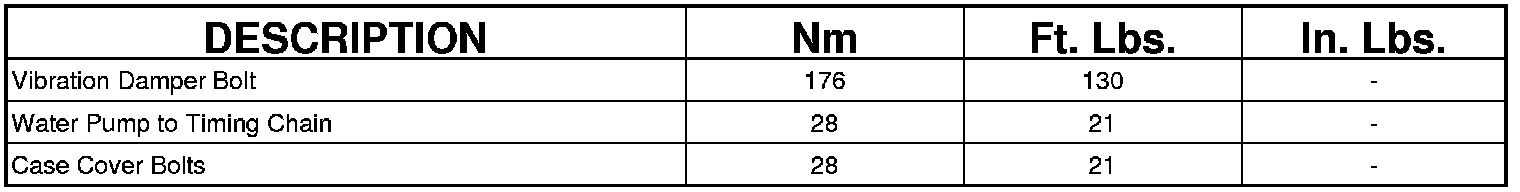

TORQUE CHART 5.7L ENGINE

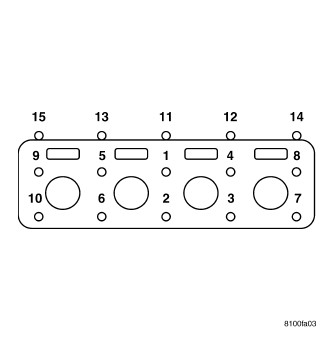

Cylinder Head Sequence






Intake Manifold Sequence

Tighten in sequence from the middle bolts towards the outside in a crisscross pattern.


Main Bearing Cap Sequence

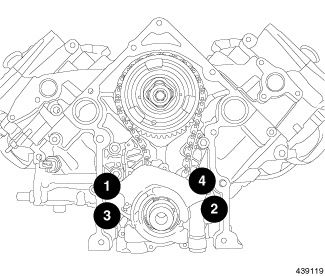

Oil Pump Sequence

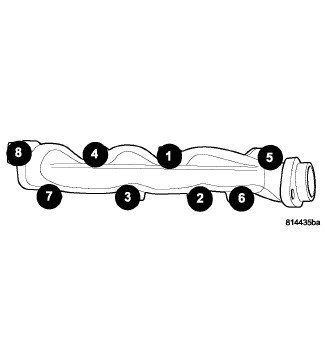

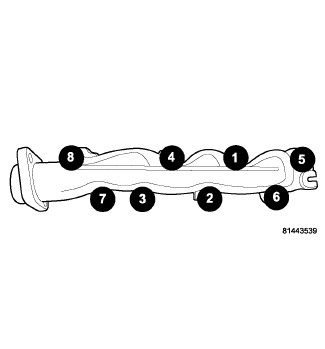

Exhaust Manifold Sequence
