Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

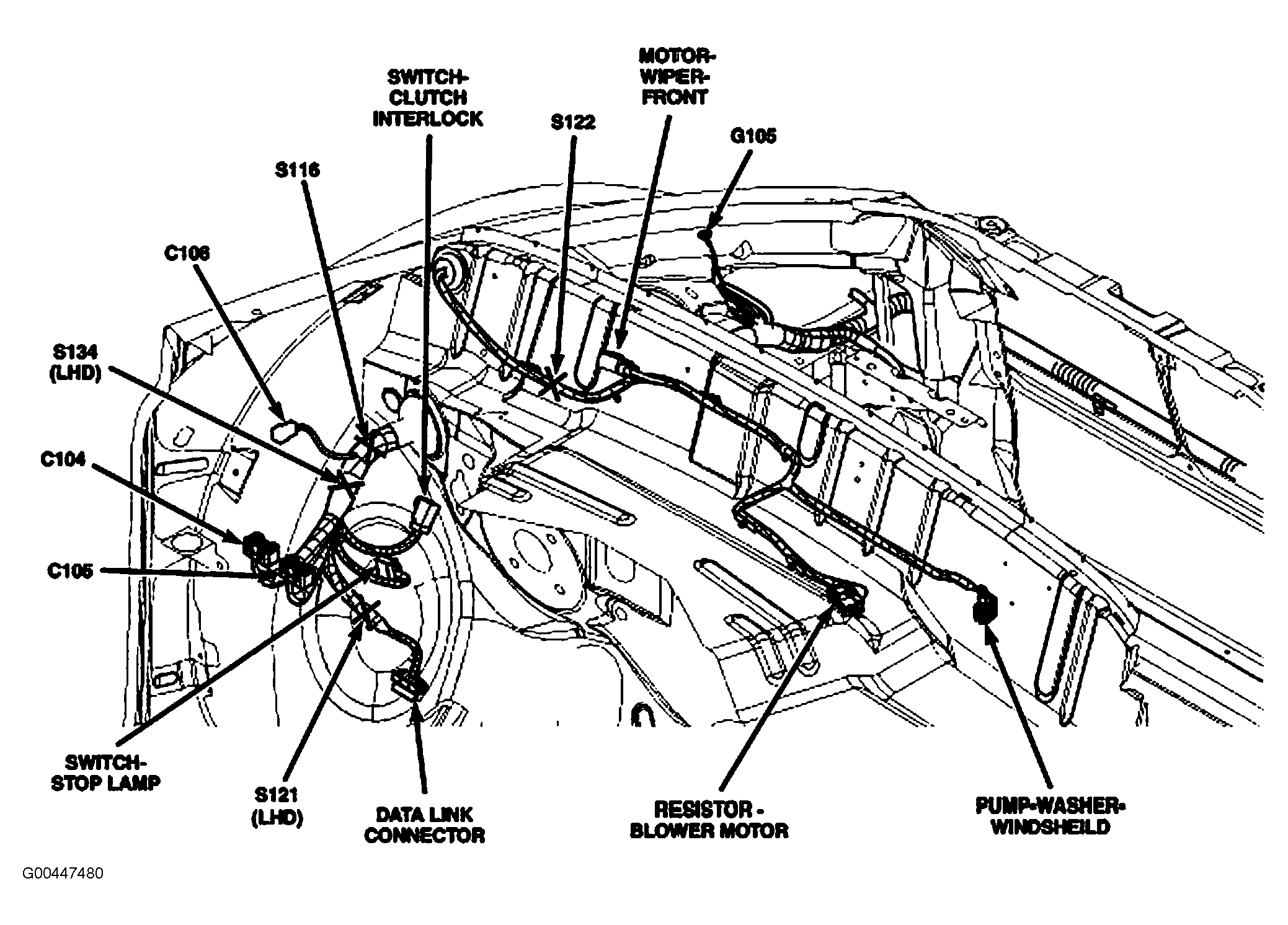

| Blower Motor Resistor | Behind right side of dash, in blower motor housing. See Figure. |

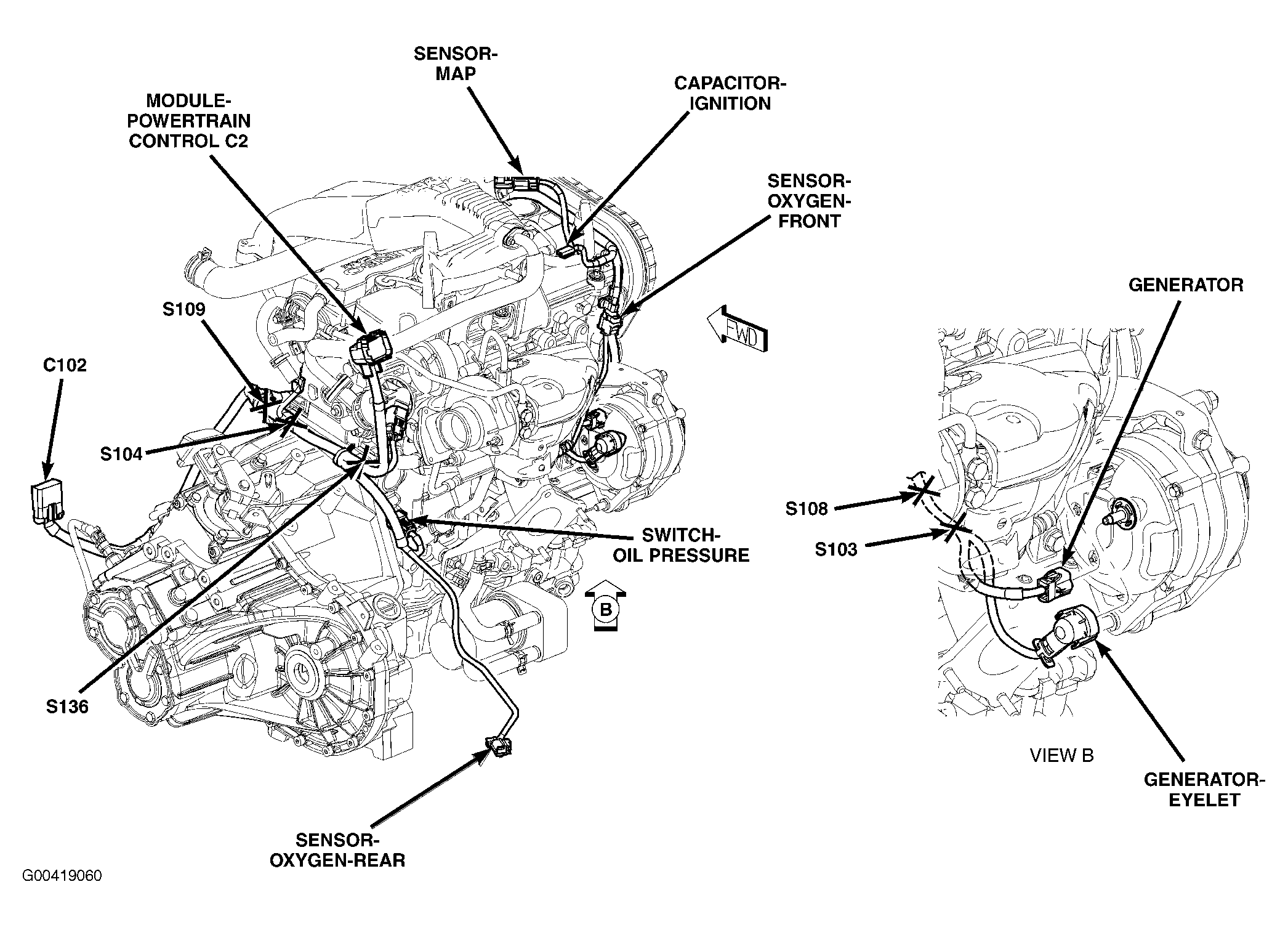

| Ignition Capacitor | Top front of valve cover. See Figure. |

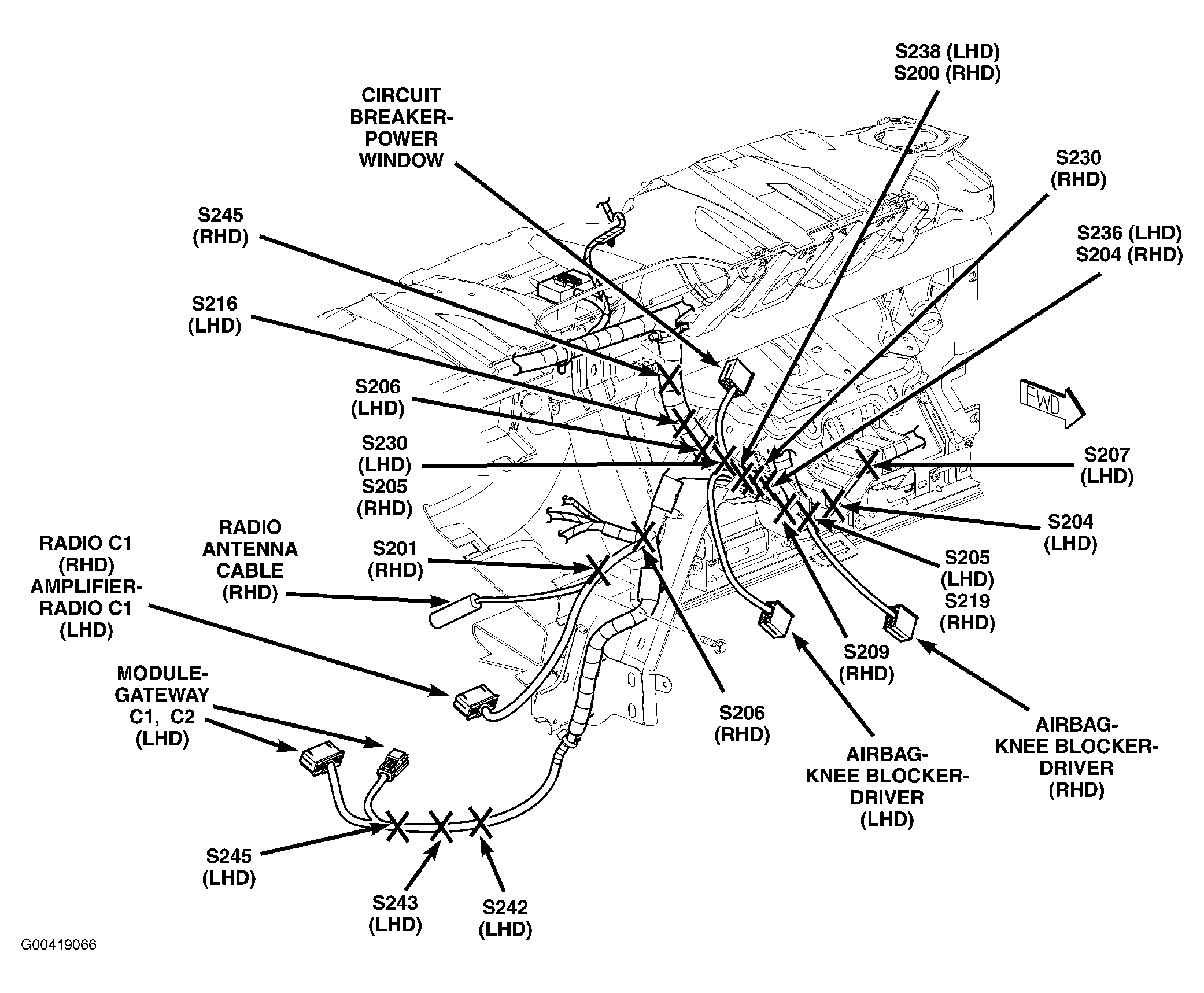

| Power Window Circuit Breaker | Left side of dash. See Figure. |
| Totally Integrated Power Module. | Left rear of engine compartment. |
