Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

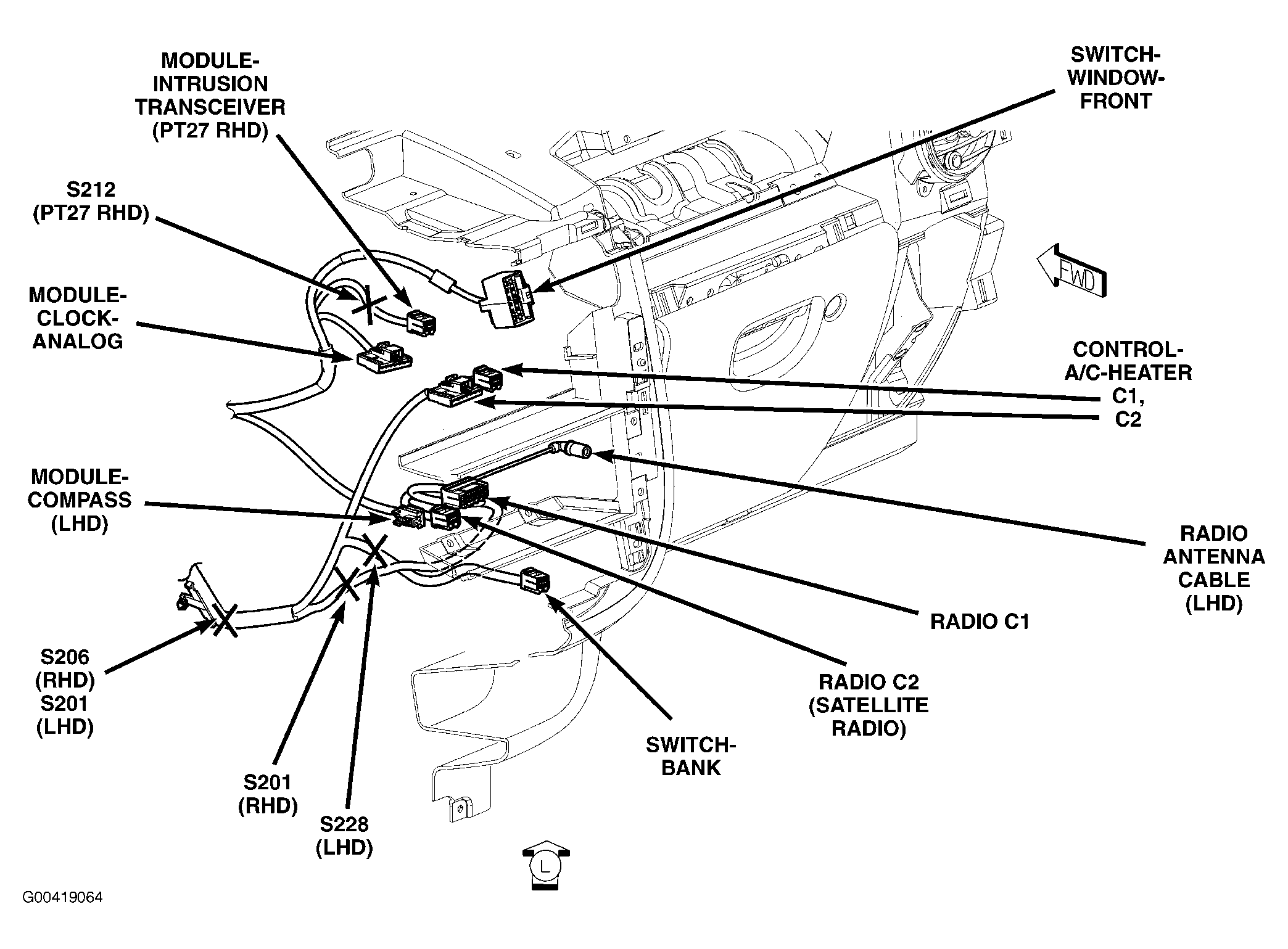

| Analog Clock Module | Right side of dash. See Figure. |
| Anti-Lock Brake Module | Left side of engine compartment, on bottom of hydraulic control unit. See Figure. |
| Compass Module | At top center of windshield. See Figure. |

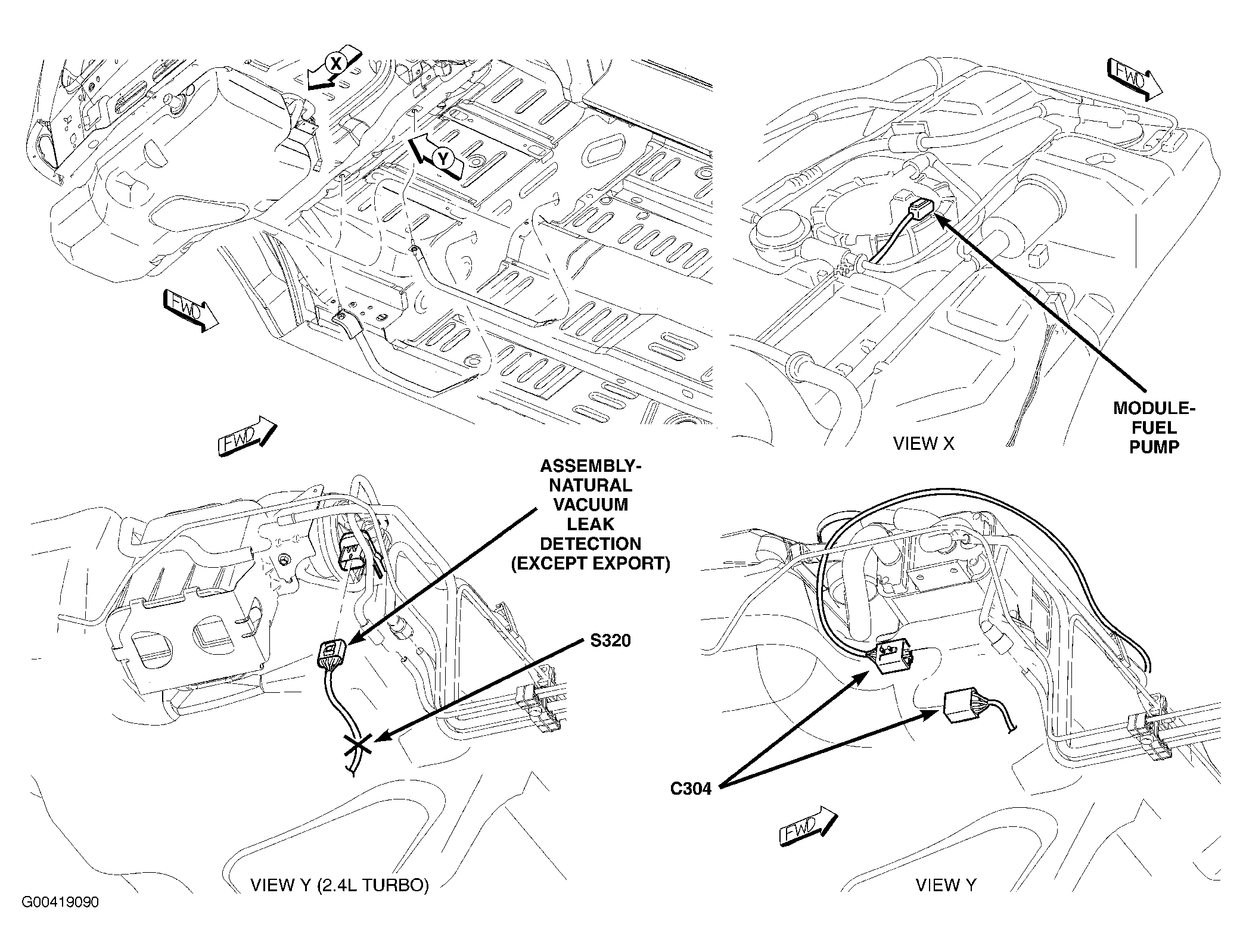

| Fuel Pump Module | On fuel tank. See Figure. |

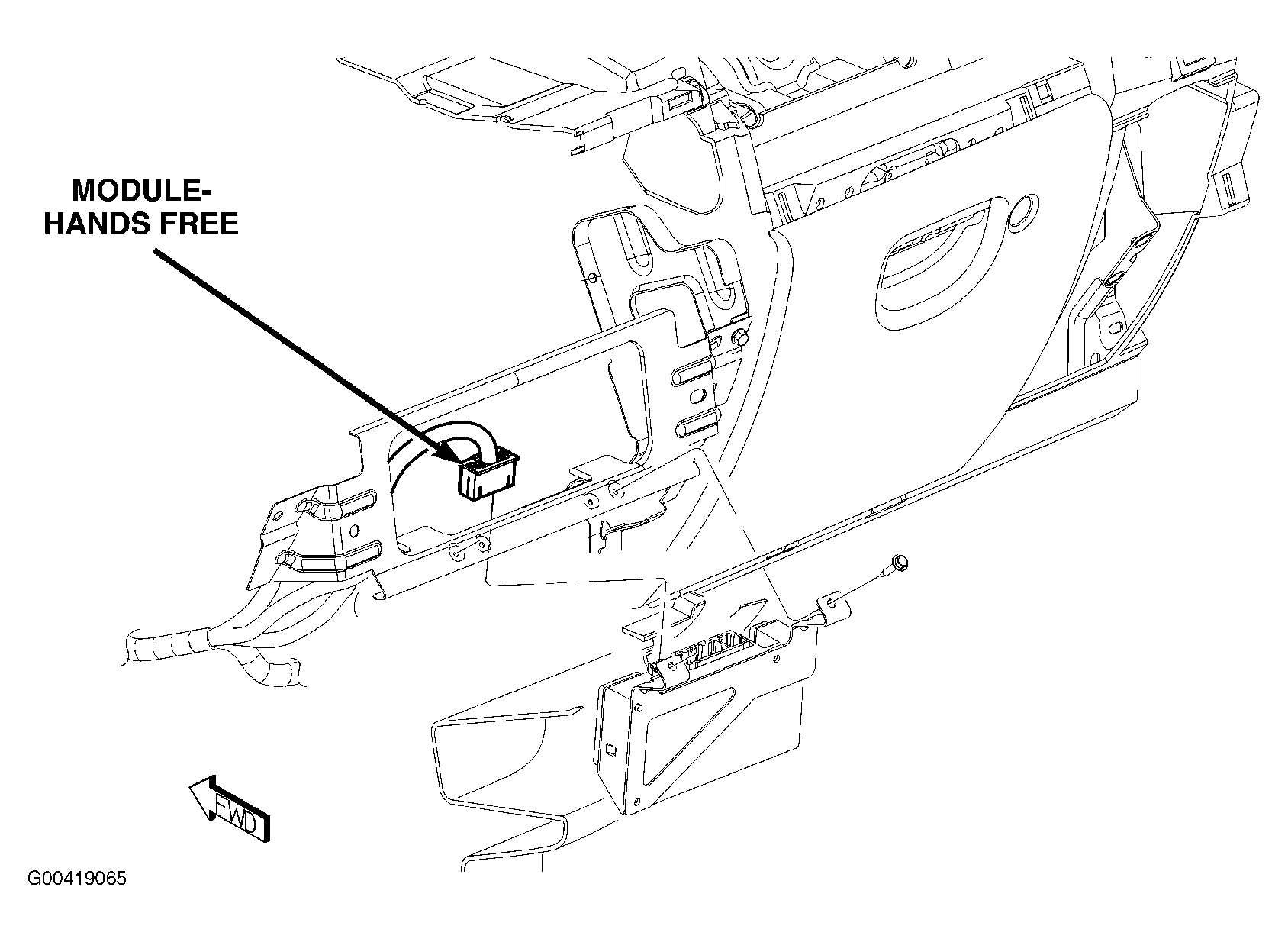

| Hands Free Module | Left center of instrument panel. See Figure. |

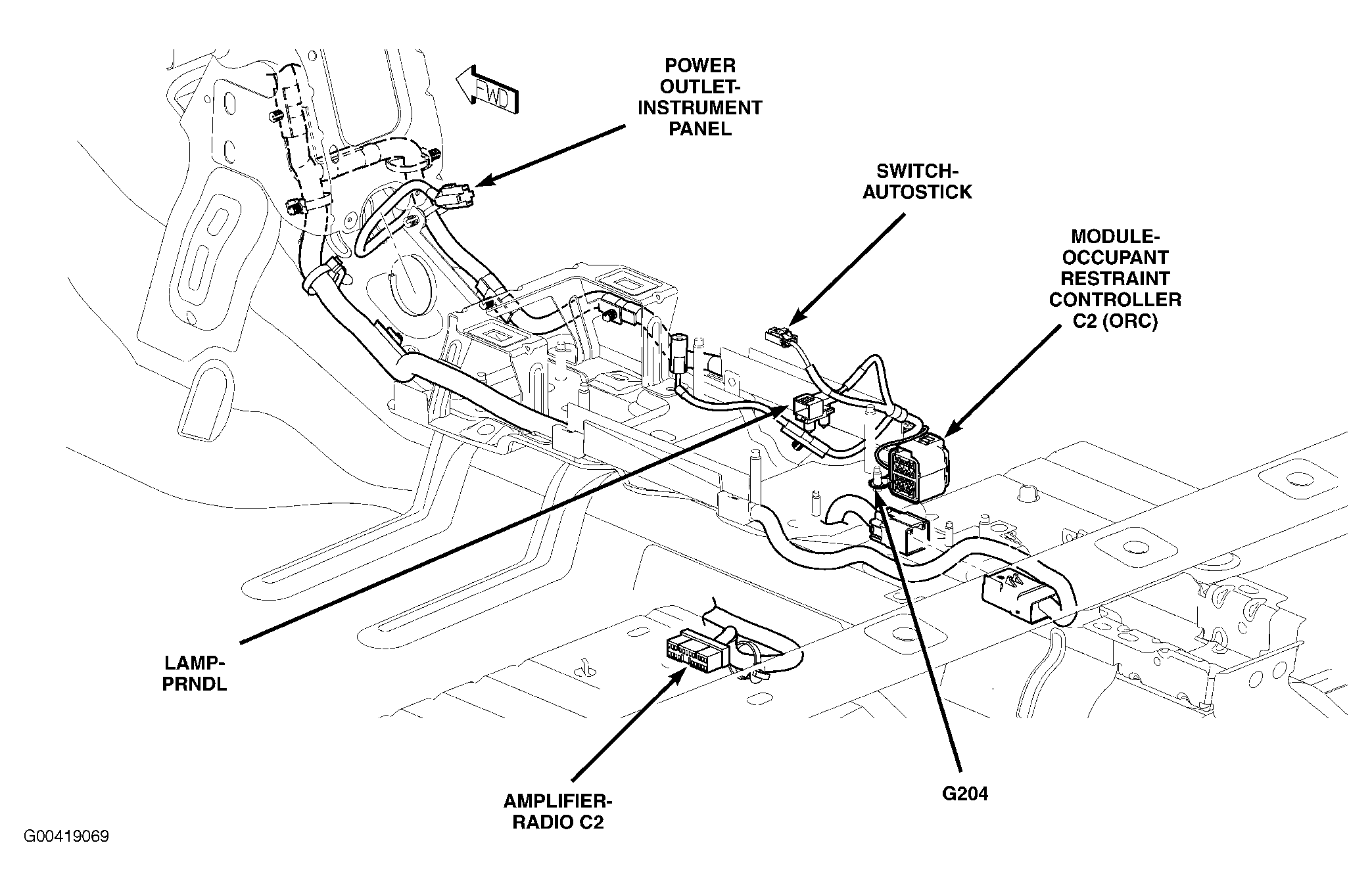

| Occupant Restraint Controller Module | Center body floor. See Figure. |

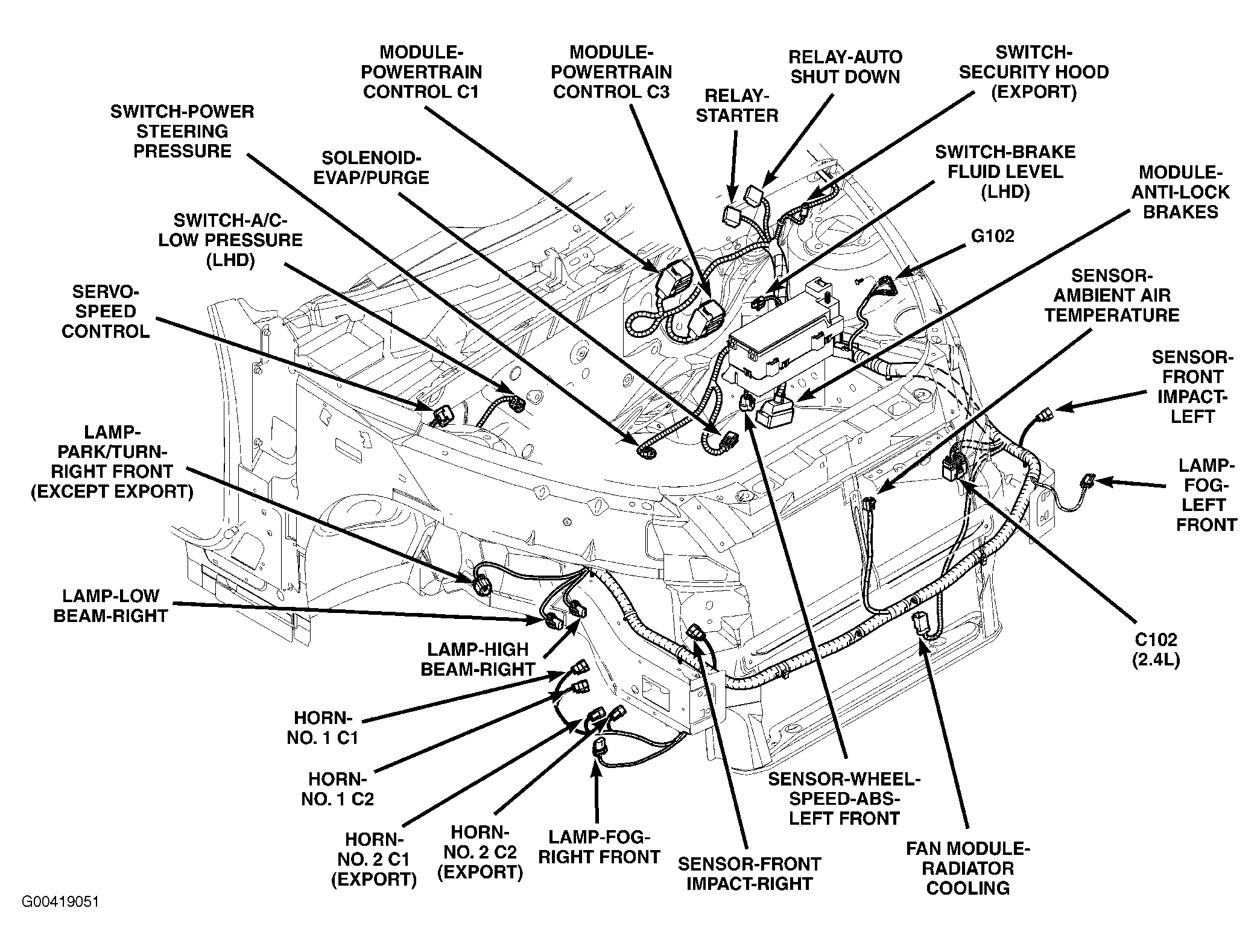

| Powertrain Control Module | On firewall, behind power distribution center. See Figure. |
| Radiator Cooling Fan Module | Front of radiator. See Figure. |

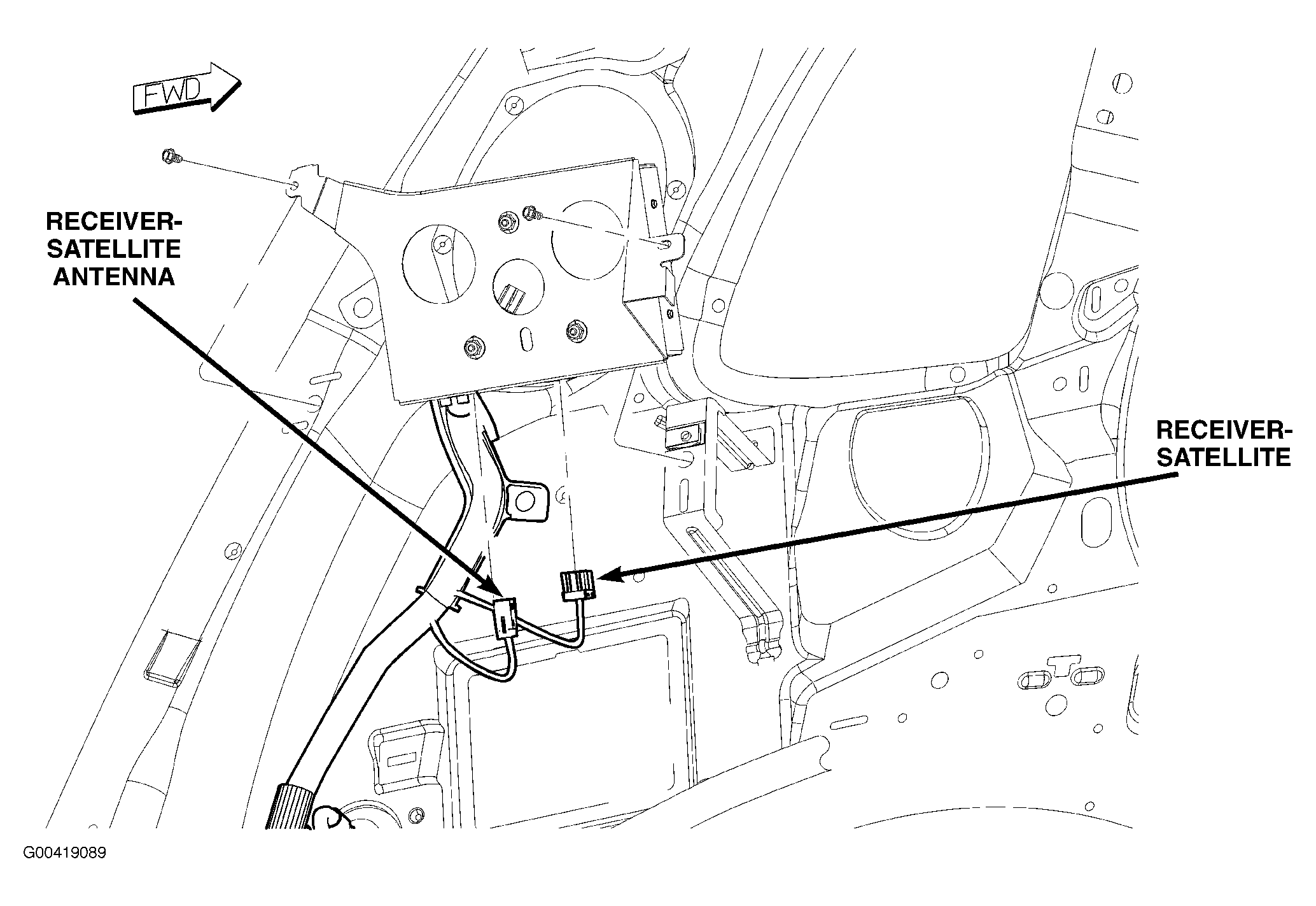

| Satellite Receiver | Left "C" pillar. See Figure. |

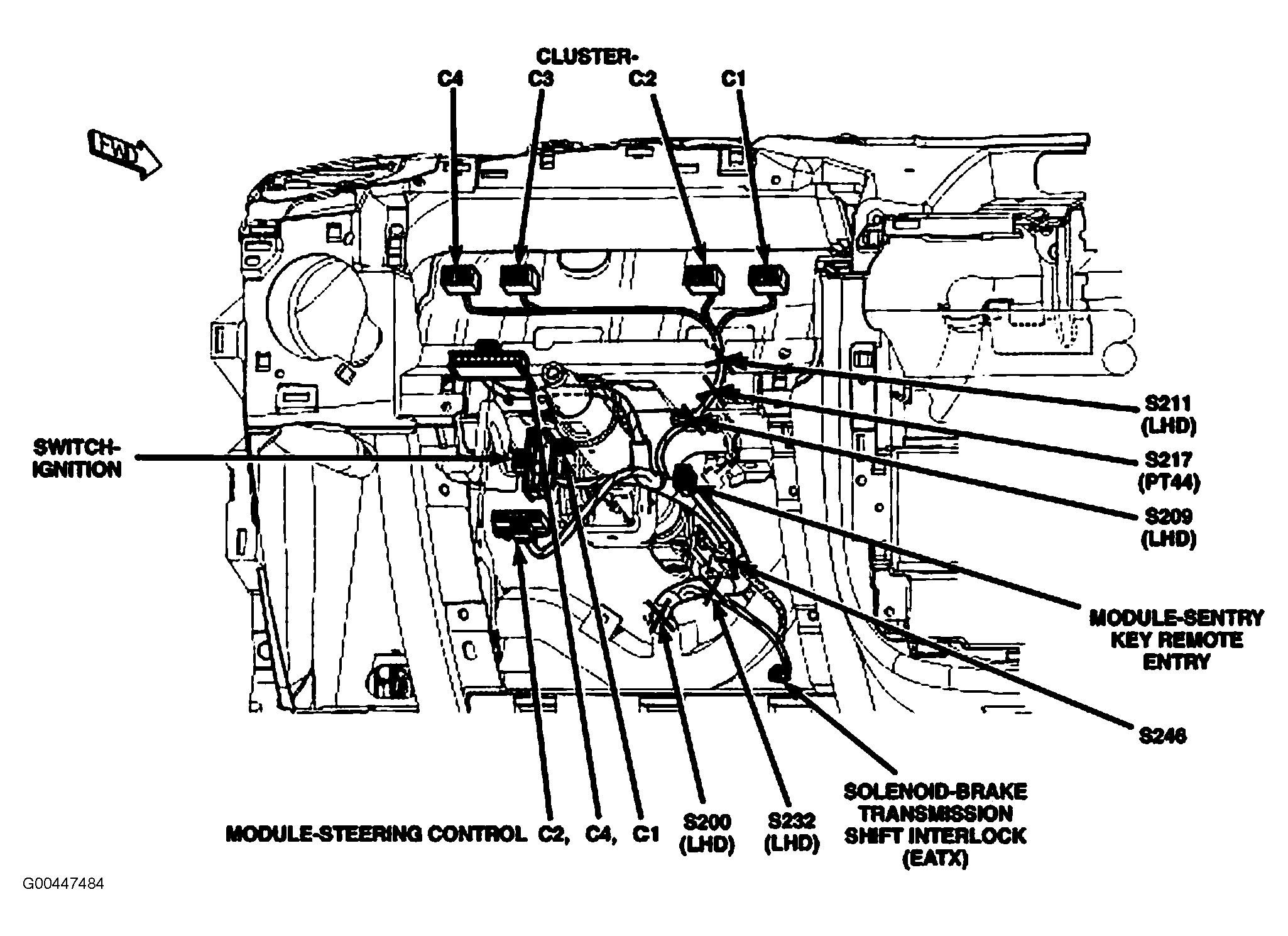

| Sentry Key Remote Entry Module | On steering column, near ignition lock cylinder. See Figure. |

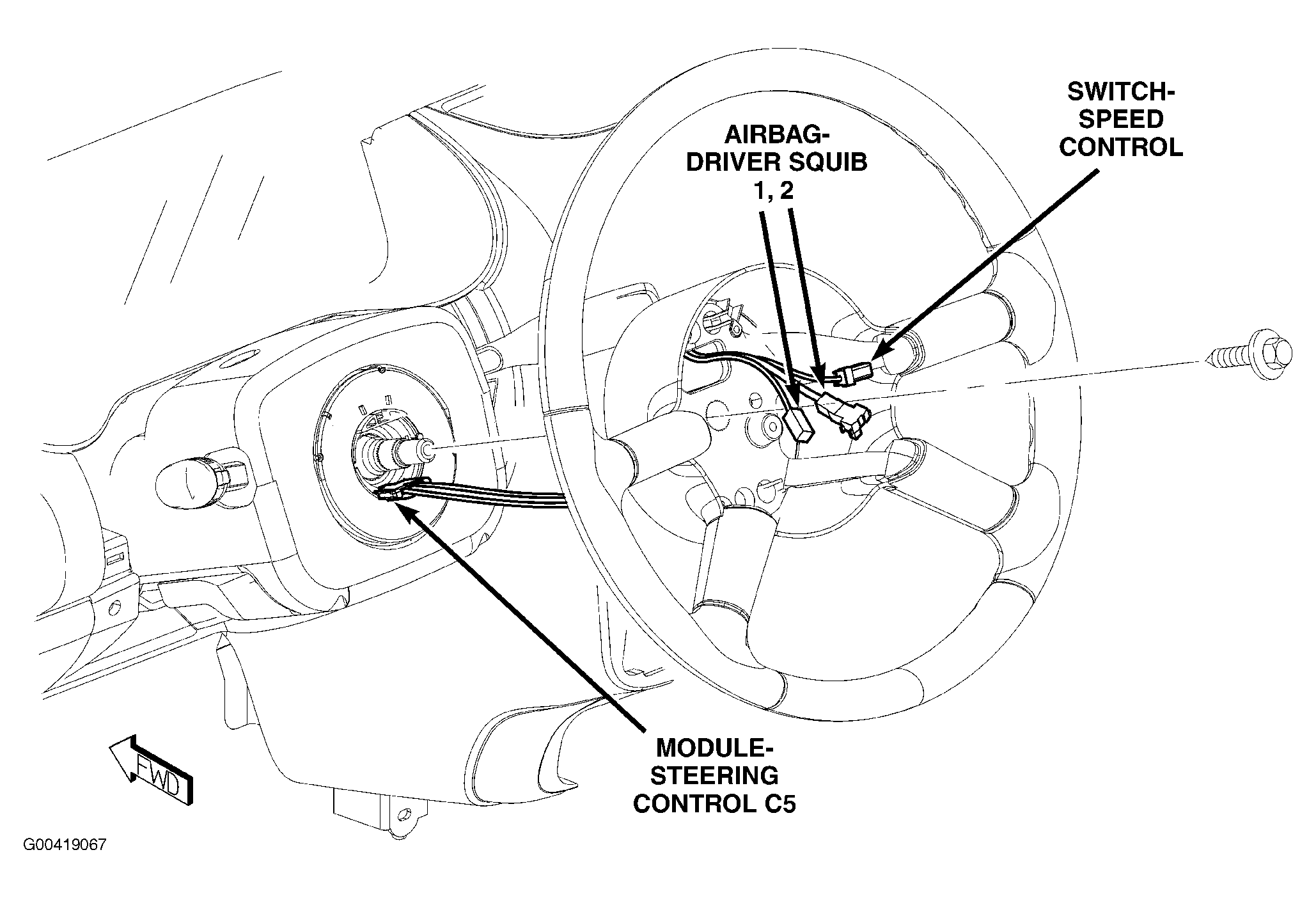

| Steering Wheel Control Module | Left side of dash. See Figure. |
