Diagnostic Test

CHECK FOR ACTIVE DTC
1. With the scan tool, record and erase DTCs.
2. Cycle the ignition switch from off to on, leaving the ignition off for a minimum of 30 seconds.
3. With the scan tool, read the active DTCs.
  Does the scan tool display this DTC as active?

  Yes
  - Go to step 2
  No
  - If the DTC is stored, check for an intermittent condition. Using the wiring diagram/schematic as a guide, visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
INSPECT THE TIPM AND ORC TERMINALS AND WIRE HARNESS FOR A CONDITION CAUSING HIGH CIRCUIT RESISTANCE

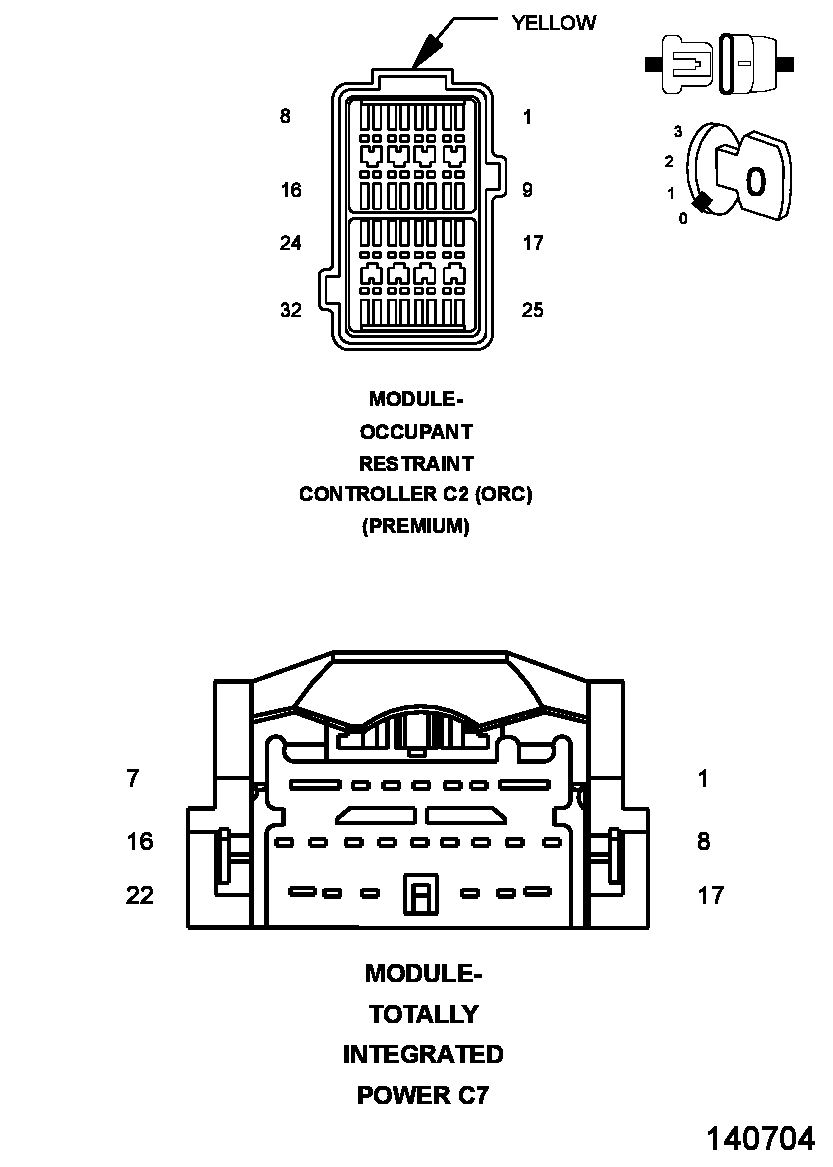

Fig 1: Checking TIPM & ORC Terminals With Wire Harness
Courtesy of CHRYSLER LLC

WARNING: To avoid possible serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
1. Disconnect the TIPM C7 harness connector.
2. Disconnect the ORC harness connector.
3. Inspect the connector terminal for signs of corrosion build up and damage.
4. Visually inspect the wiring harness for any chafed, pierced, pinched or partially broken wires hidden in the wire insulation.
  Were any of the above conditions found?

  Yes
  - Repair as necessary.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Go to step 3
CHECK THE (F200) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT FUNCTION

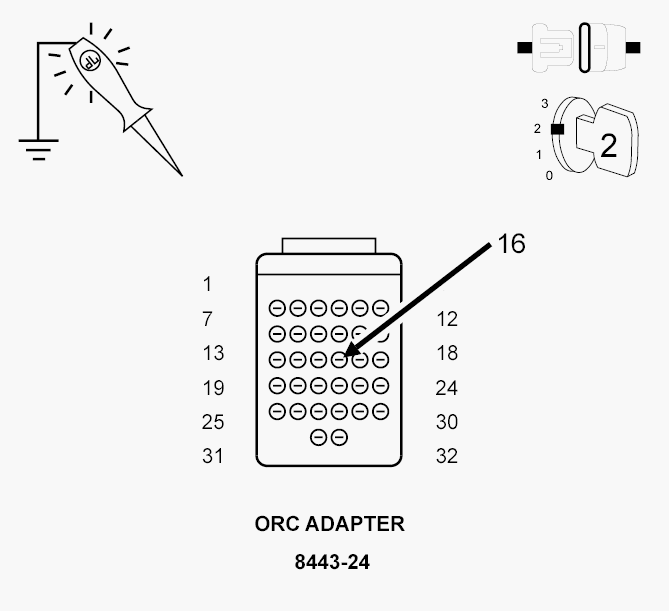

Fig 2: Checking Fused Ignition Switch Output (Run/Start) Circuit
Courtesy of CHRYSLER LLC
1. Connect the 8443-24 Load Tool ORC Adaptor to the ORC C2 connector.
2. Using a 12 volt test light connected to 12 volts, probe the (F200) Fused Ignition Switch Output (Run-Start) Circuit in the TIPM C7 harness connector.
  Does the test light illuminate brightly?

  Yes
  - Go to step 4
  No
  - Repair the Fused Ignition Switch Output (Run-Start) Circuit for high resistance.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
CHECK THE OUTPUT FROM THE TIPM ON THE (F200) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT

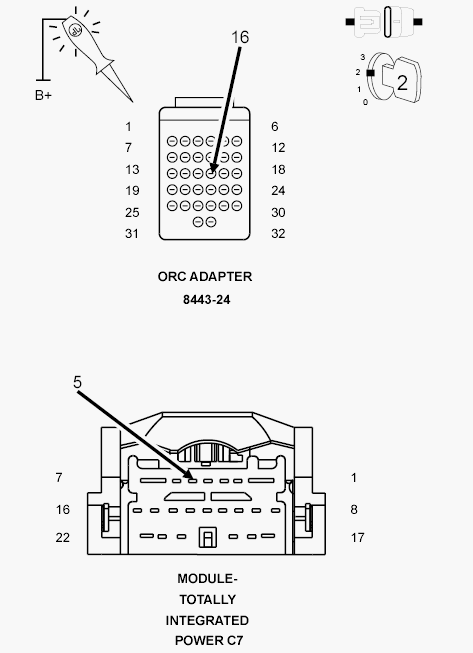

Fig 3: Checking Output From TIPM On Fused Ignition Switch Output (Run/Start) Circuit
Courtesy of CHRYSLER LLC
1. Reconnect the TIPM C7 harness connector.
2. Turn the ignition on.
3. Using a 12 volt test light connected to ground, probe the (F200) Fused Ignition Switch Output (Run-Start) circuit in the 8443-24 Load Tool ORC Adaptor.
  Does the test light illuminate brightly?

  Yes
  - Replace the ORC in accordance with the Service Information.
  - Perform the ORC VERIFICATION TEST. Refer to DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
  No
  - Replace the TIPM in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
