MODULE, Engine Control: Installation: Installation
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
- Install ECM on mounting bracket . Torque nuts to 10.7N.m (95 lbs. in.).
- Install ECM (2) and mounting bracket assembly in vehicle .
- Connect both ECM (2) electrical connectors.

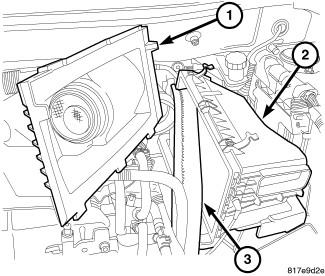

- Install air cleaner housing assembly (2). Refer to Engine/Air Intake System/BODY, Air Cleaner - Installation .
- Connect vacuum hose (1).
- Connect negative battery cable.
- Install air inlet tube (3).
- Reprogram ECM. See Electrical/Electronic Control Modules/MODULE, Engine Control - Standard Procedure .
