Section 1 (Clutch System): Description: Description: Notes
WARNING: This page is about a different variant/trim than selected.

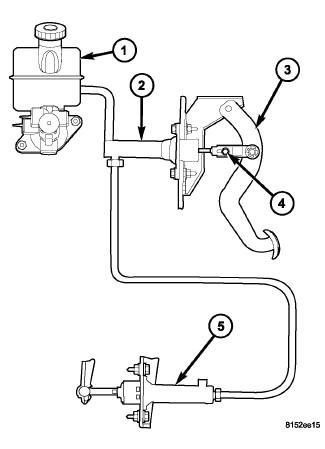

| 1 - BRAKE MASTER CYLINDER RESERVOIR |
| 2 - CLUTCH MASTER CYLINDER |
| 3 - PEDAL ASSEMBLY |
| 4 - ADJUSTMENT SCREW |
| 5 - SLAVE CYLINDER |
The typical clutch hydraulic system consists of a clutch master cylinder (2) , slave cylinder (5), and an interconnecting fluid line. Clutch hydraulic fluid is supplied by the brake system via the brake master cylinder reservoir (1). LHD models have an adjustable pedal pushrod (4). See Fig 1.

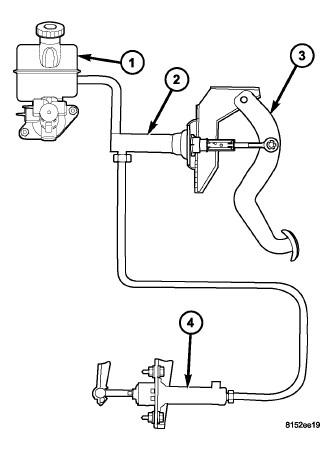

| 1 - BRAKE MASTER CYLINDER RESERVOIR |
| 2 - CLUTCH MASTER CYLINDER |
| 3 - PEDAL ASSEMBLY |
| 4 - SLAVE CYLINDER |
The typical clutch hydraulic system consists of a clutch master cylinder (2) , slave cylinder (4), and an interconnecting fluid line. Clutch hydraulic fluid is supplied by the brake system via the brake master cylinder reservoir (1). See Fig 2. LHD models have an adjustable pedal pushrod.
