Occupant Restraint Controller - Installation

INSTALLATION

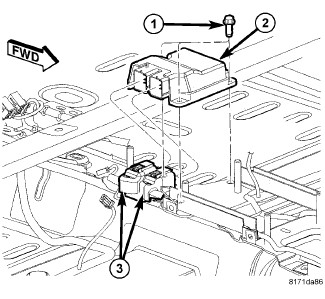

1. Connect the two ORC connectors (3, referred to as C1 and C2 in the diagnostic information and wiring) and ensure that all locking tabs are engaged.

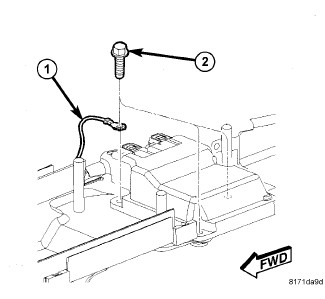

2. Position ORC (arrow pointing forward) in the console floor bracket, replace ground eyelet (1), and attach the screws (2) and tighten to 10.5 Nm (95 in. lbs.).

NOTE: Place the ground eyelet (1) on the passenger side front screw (2) when reattaching the ORC.

3. Install center console assembly Center Console - Installation.

WARNING: Do not connect the battery negative cable Restraints . Serious or fatal injury may result if the system test is not performed first.
