Charging System (Service Information): Generator: Installation: 2.4L

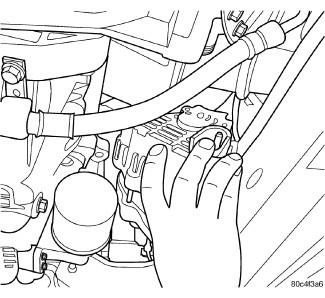

Fig 1: Generator Removal

Courtesy of CHRYSLER LLC

1. Install generator and loose assemble the bolt and nut.
2. Install and tension the generator belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Installation .

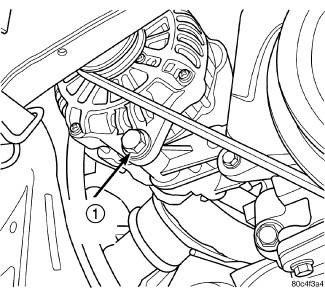

   Fig 2: Lower Pivot Bolt

   Courtesy of CHRYSLER LLC

   1 - LOWER PIVOT BOLT

3. Tighten the lower pivot bolt (1) to 54 N.m (40 ft. lbs.).
4. Install axle shaft. Refer to Differential and Driveline/Half Shaft - Installation .

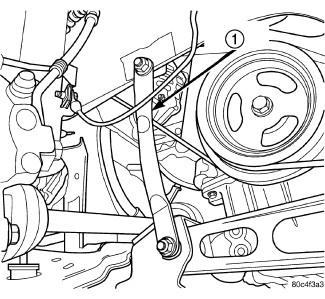

   Fig 3: Pencil Strut

   Courtesy of CHRYSLER LLC

   1 - PENCIL STRUT

5. Install the pencil strut (1) tighten to 52 N.m (38 ft. lbs.).

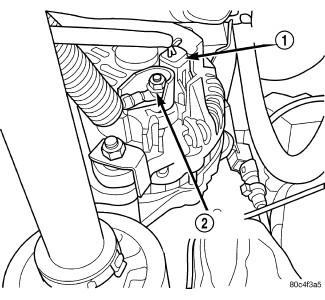

   Fig 4: Battery Connection

   Courtesy of CHRYSLER LLC

   1 - FIELD CONNECTOR

   2 - BATTERY CONNECTION

6. Install the B+ terminal nut (2) and B+ terminal. Tighten to 11.3 N.m (100 ins. lbs.).
7. Plug in the field circuit connector (1) to generator.

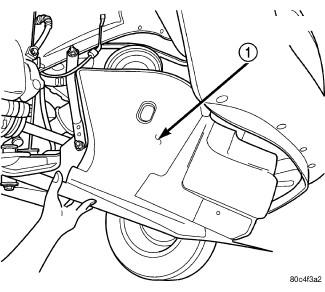

   Fig 5: Accessory Drive Splash Shield

   Courtesy of CHRYSLER LLC

   1 - ACCESSORY DRIVE BELT SPLASH SHIELD

8. Install the accessory drive splash shield (1).
9. Install the right front wheel, refer to TIRES/WHEELS - SERVICE INFORMATION .
10. Lower vehicle.

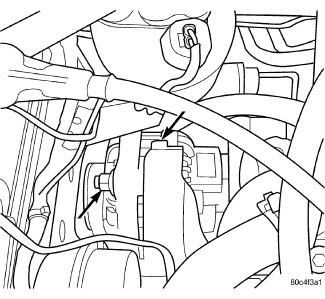

    Fig 6: Generator T-Bolt Locknut And Adjustment Bolt

    Courtesy of CHRYSLER LLC
11. Tighten the T-bolt locknut and tighten to 54 N.m (40 ft. lbs.)
12. Connect the negative battery cable.
13. Install the air cleaner lid and connect the inlet air temperature sensor and makeup hose.
14. Check the transmission fluid.
