Communication Devices
>>
Driver Door Module (DDM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
U0196-Lost Communication With Vehicle Entertainment Control Module
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

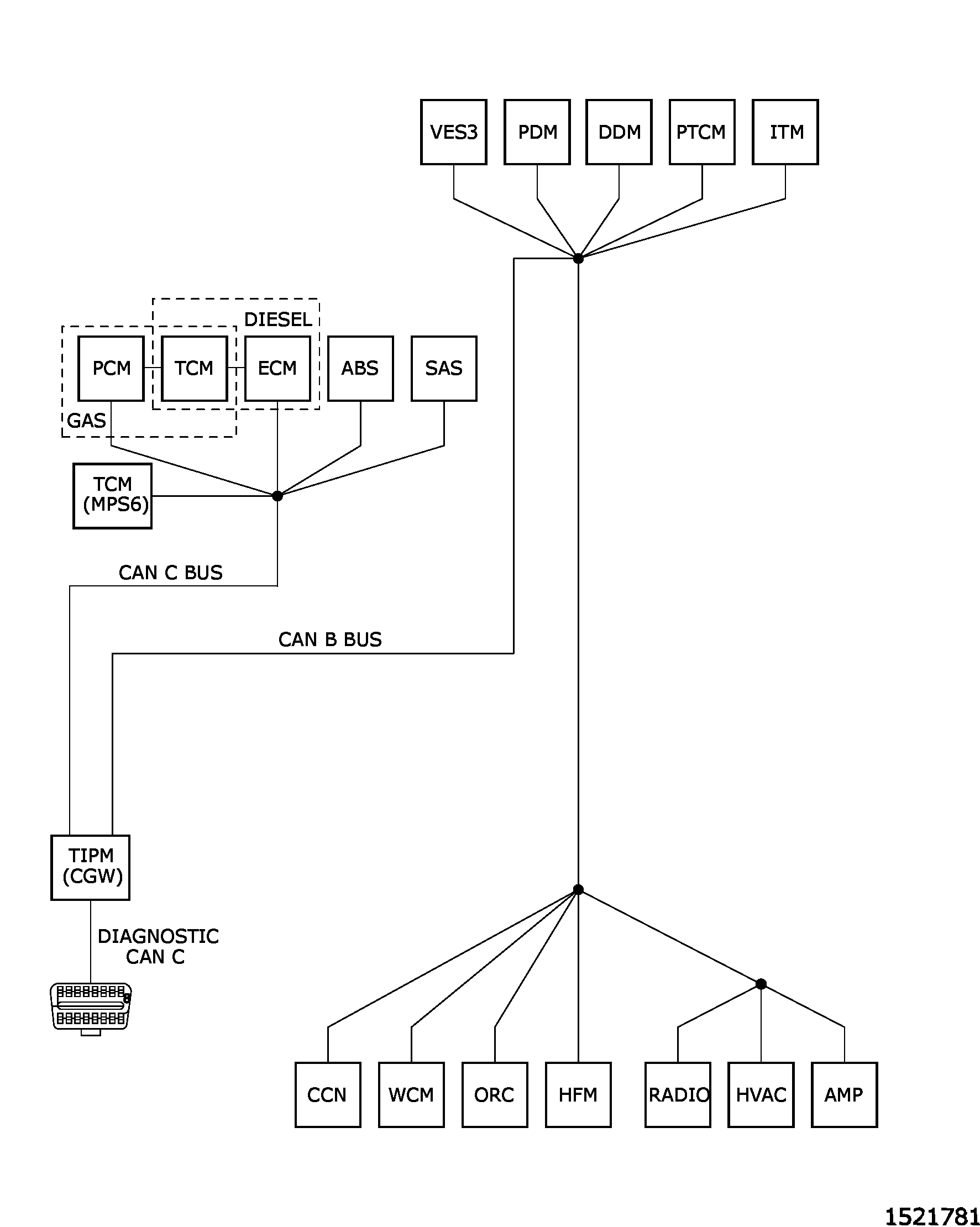

Fig 1: CAN B & C BUS Module Diagram
Courtesy of CHRYSLER LLC
