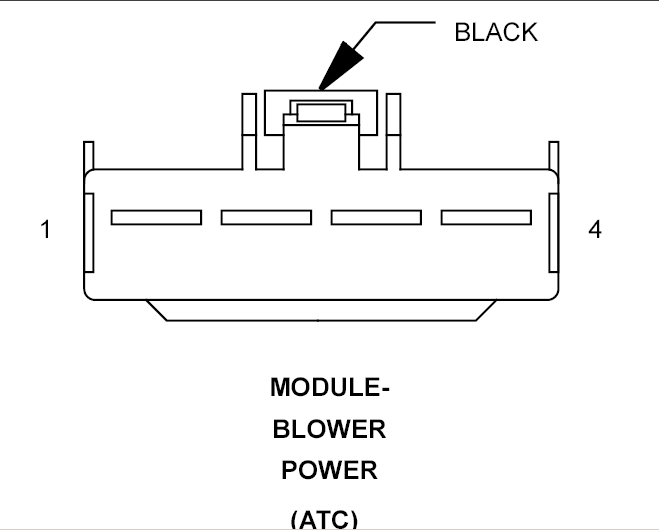

Blower Power Module (Automatic Temperature Control) Connector End View
MODULE-BLOWER POWER - BLACK 4 WAY (ATC)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z910 12BK |
GROUND |
| 2 |
C56 20DB/LB |
BLOWER MOTOR SPEED CONTROL |
| 3 |
C7 12DB |
BLOWER MOTOR CONTROL |
| 4 |
Z134 12BK/LG |
GROUND |
