Driver Door Module Connector End View (C2)

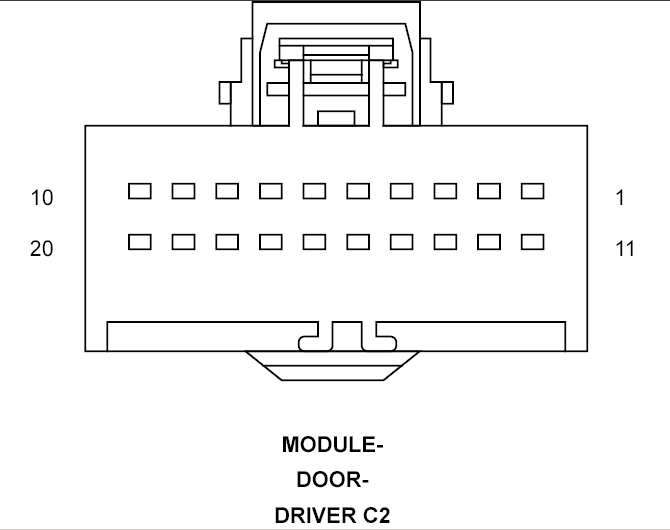

MODULE-DOOR-DRIVER C2 - 20 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | D54 20WT | CAN B BUS (-) |
| 2 | D55 20WT/OR | CAN B BUS (+) |
| 3 | Q15 20OR/PK | WINDOW LOCK OUT SWITCH OUTPUT |
| 4 | Q994 20BK/BR | DRIVER EXPRESS WINDOW SWITCH RETURN |
| 5 | G755 20VT/BR | LEFT DOOR SECONDARY AJAR SWITCH SENSE (JS27 LHD) |
| 5 | G745 20VT/WT | RIGHT DOOR SECONDARY AJAR SWITCH SENSE (JS27 RHD) |
| 6 | Q59 20OR/YL | DRIVER WINDOW DROP SWITCH SENSE (JS27) |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | Q305 20OR | DRIVER WINDOW HALL SENSOR SUPPLY |
| 12 | Z908 20BK | GROUND |
| 13 | Q221 20GY/OR | MASTER SWITCH LEFT FRONT WINDOW MUX |
| 14 | Q222 20OR/GY | MASTER SWITCH RIGHT FRONT WINDOW MUX |
| 15 | - | - |
| 16 | G75 20VT | LEFT FRONT DOOR AJAR SWITCH SENSE (JS27 LHD) |
| 16 | G74 20VT/WT | RIGHT FRONT DOOR AJAR SWITCH SENSE (JS27 RHD) |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| 20 | - | - |
