EVAP System Monitor Switch (Except Export) Connector End View

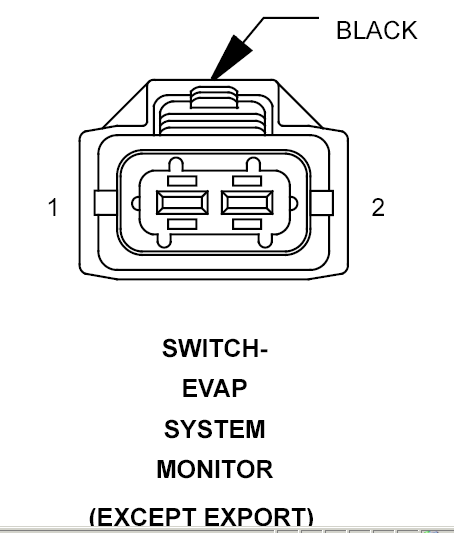

SWITCH-EVAP SYSTEM MONITOR - BLACK 2 WAY (EXCEPT EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z916 20BK
GROUND
2
K107 20VT/WT
ESM SIGNAL
Courtesy of CHRYSLER CORP.
