Fuel Pump Module (AWD) Connector End View (C2)

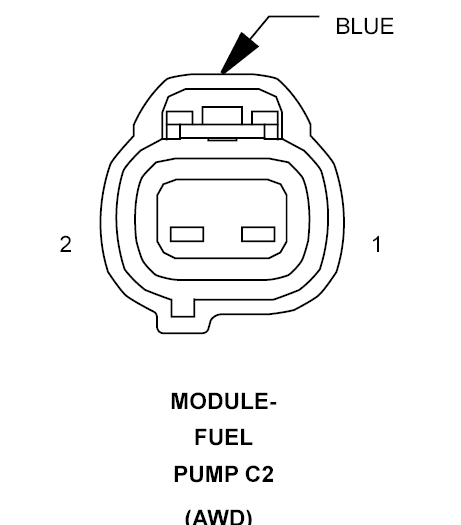

MODULE-FUEL PUMP C2 - BLUE 2 WAY (AWD)

GJS880271Courtesy of CHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 Z916 20BK GROUND
2 N5 20DB/OR FUEL LEVEL SIGNAL 2
