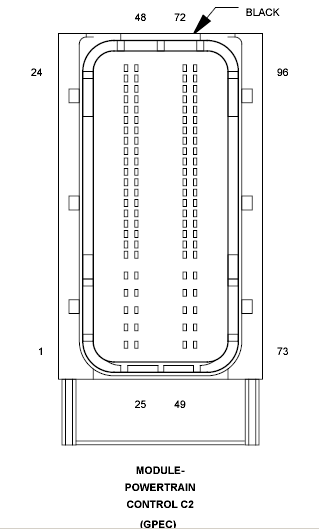

Powertrain Control Module (GPEC) Connector End View (C2)
MODULE-POWERTRAIN CONTROL C2 - BLACK 96 WAY (GPEC)
| CAV | CIRCUIT | FUNCTION |
| 1 | K124 20DB/VT | ETC MOTOR (+) |
| 2 | T118 18DG | LP VFS CONTROL (40TE) |
| 3 | - | - |
| 4 | - | - |
| 5 | - | - |
| 6 | C27 20LB/WT | A/C COMPRESSOR CONTROL |
| 7 | - | - |
| 8 | K21 20DB/LG | IAT SIGNAL |
| 9 | T38 20YL/BR | LP VFS SIGNAL (40TE) |
| 10 | T50 20YL/TN | L/R PRESSURE SIGNAL (40TE) |
| 11 | K222 20BR/BK | ECT 2 SIGNAL |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| 20 | - | - |
| 21 | K13 20BR/LB | INJECTOR 3 CONTROL |
| 22 | K14 20BR/TN | INJECTOR 4 CONTROL |
| 23 | K11 20BR/OR | INJECTOR 1 CONTROL |
| 24 | K12 20BR/DB | INJECTOR 2 CONTROL |
| 25 | K126 20DB/LG | ETC MOTOR (-) |
| 26 | - | - |
| 27 | K601 20BR/VT | MFV CONTROL |
| 28 | - | - |
| 29 | T15 20YL/BR | TRANSMISSION CONTROL |
| 30 | - | - |
| 31 | T47 20YL/DG | 2-4 PRESSURE SIGNAL (40TE) |
| 32 | T9 20DG/TN | OD PRESSURE SIGNAL (40TE) |
| 33 | K41 20BK/DG | O2 1/1 SIGNAL |
| 34 | - | - |
| 35 | - | - |
| 36 | K902 20BR/TN | O2 1/1 RETURN |
| 37 | G24 20VT/BR | EOT SIGNAL |
| 38 | K441 20DB/BR | CMP 1/2 SIGNAL |
| 39 | - | - |
| 40 | - | - |
| 41 | F855 20PK/YL | 5-VOLT SUPPLY |
| 42 | F856 20YL/PK | 5-VOLT SUPPLY |
| 43 | T854 20DG | 5-VOLT SUPPLY (40TE) |
| 44 | T5 20DG/YL | AUTOSTICK UPSHIFT SIGNAL |
| 45 | - | - |
| 46 | T44 20YL/DG | AUTOSTICK DOWNSHIFT SIGNAL (40TE) |
| 47 | - | - |
| 48 | - | - |
| 49 | K99 16BR/LG | O2 1/1 HEATER CONTROL |
| 50 | T19 18YL/DB | 2-4 CONTROL (40TE) |
| 51 | K20 20BR/GY | GEN FIELD CONTROL |
| 52 | T20 18DG/WT | L/R CONTROL (40TE) |
| 53 | T59 18YL/LB | UD CONTROL (40TE) |
| 54 | T1 20DG/LB | TRS T1 SIGNAL (40TE) |
| 55 | F901 20PK/RD | IGNITION SWITCH OUTPUT (UNLOCK-RUN-START) |
| 56 | T42 20DG/YL | TRS T42 SIGNAL (40TE) |
| 57 | K44 20DB/GY | CMP 1/1 SIGNAL |
| 58 | K915 20BR/PK | SENSOR GROUND |
| 59 | - | - |
| 60 | K957 20BK/OR | SENSOR GROUND |
| 61 | K157 20BR/OR | SAF SIGNAL |
| 62 | K922 20BR/DB | TP SENSOR GROUND |
| 63 | K122 20BR/DG | TP SIGNAL 2 |
| 64 | K22 20BR/OR | TP SIGNAL 1 |
| 65 | K942 20WT/BR | KS RETURN |
| 66 | T52 20DG/OR | INPUT SPEED SIGNAL (40TE) |
| 67 | - | - |
| 68 | - | - |
| 69 | - | - |
| 70 | K76 20BR/WT | CMP 1/1 CONTROL |
| 71 | - | - |
| 72 | K276 20DB/WT | CMP 1/2 CONTROL |
| 73 | K15 18DB/GY | COIL 4 CONTROL |
| 74 | K18 18DB/OR | COIL 3 CONTROL |
| 75 | K17 18DB/TN | COIL 2 CONTROL |
| 76 | K19 18DB/DG | COIL 1 CONTROL |
| 77 | T60 18YL/WT | OD CONTROL (40TE) |
| 78 | T41 20YL/DB | TRS T41 SIGNAL (40TE) |
| 79 | K24 20BR/LB | CKP SIGNAL |
| 80 | T54 20DG/GY | TRANSMISSION TEMPERATURE SIGNAL (40TE) |
| 81 | T3 20DG/DB | TRS T3 SIGNAL (40TE) |
| 82 | K900 20DB/LB | SENSOR GROUND |
| 83 | K2 20VT/OR | ECT 1 SIGNAL |
| 84 | K602 20YL/DB | MFV SIGNAL |
| 85 | K1 20VT/DG | MAP SIGNAL |
| 86 | G6 20VT/GY | EOP SIGNAL |
| 87 | T853 20YL/GY | SENSOR GROUND (40TE) |
| 88 | K42 20DB/YL | KS SIGNAL |
| 89 | T14 20DG/BR | OUTPUT SPEED SIGNAL (40TE) |
| 90 | T13 20DG/VT | SENSOR GROUND (40TE) |
| 91 | - | - |
| 92 | - | - |
| 93 | - | - |
| 94 | - | - |
| 95 | - | - |
| 96 | - | - |
MODULE-POWERTRAIN CONTROL C2 - BLACK 96 WAY (GPEC)
| CAV | CIRCUIT | FUNCTION |
| 1 | K124 20DB/VT | ETC MOTOR (+) |
| 2 | T118 18DG | LP VFS CONTROL (40TE) |
| 3 | - | - |
| 4 | - | - |
| 5 | - | - |
| 6 | C27 20LB/WT | A/C COMPRESSOR CONTROL |
| 7 | - | - |
| 8 | K21 20DB/LG | IAT SIGNAL |
| 9 | T38 20YL/BR | LP VFS SIGNAL (40TE) |
| 10 | T50 20YL/TN | L/R PRESSURE SIGNAL (40TE) |
| 11 | K222 20BR/BK | ECT 2 SIGNAL |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| 20 | - | - |
| 21 | K13 20BR/LB | INJECTOR 3 CONTROL |
| 22 | K14 20BR/TN | INJECTOR 4 CONTROL |
| 23 | K11 20BR/OR | INJECTOR 1 CONTROL |
| 24 | K12 20BR/DB | INJECTOR 2 CONTROL |
| 25 | K126 20DB/LG | ETC MOTOR (-) |
| 26 | - | - |
| 27 | K601 20BR/VT | MFV CONTROL |
| 28 | - | - |
| 29 | T15 20YL/BR | TRANSMISSION CONTROL |
| 30 | - | - |
| 31 | T47 20YL/DG | 2-4 PRESSURE SIGNAL (40TE) |
| 32 | T9 20DG/TN | OD PRESSURE SIGNAL (40TE) |
| 33 | K41 20BK/DG | O2 1/1 SIGNAL |
| 34 | - | - |
| 35 | - | - |
| 36 | K902 20BR/TN | O2 1/1 RETURN |
| 37 | G24 20VT/BR | EOT SIGNAL |
| 38 | K441 20DB/BR | CMP 1/2 SIGNAL |
| 39 | - | - |
| 40 | - | - |
| 41 | F855 20PK/YL | 5-VOLT SUPPLY |
| 42 | F856 20YL/PK | 5-VOLT SUPPLY |
| 43 | T854 20DG | 5-VOLT SUPPLY (40TE) |
| 44 | T5 20DG/YL | AUTOSTICK UPSHIFT SIGNAL |
| 45 | - | - |
| 46 | T44 20YL/DG | AUTOSTICK DOWNSHIFT SIGNAL (40TE) |
| 47 | - | - |
| 48 | - | - |
| 49 | K99 16BR/LG | O2 1/1 HEATER CONTROL |
| 50 | T19 18YL/DB | 2-4 CONTROL (40TE) |
| 51 | K20 20BR/GY | GEN FIELD CONTROL |
| 52 | T20 18DG/WT | L/R CONTROL (40TE) |
| 53 | T59 18YL/LB | UD CONTROL (40TE) |
| 54 | T1 20DG/LB | TRS T1 SIGNAL (40TE) |
| 55 | F901 20PK/RD | IGNITION SWITCH OUTPUT (UNLOCK-RUN-START) |
| 56 | T42 20DG/YL | TRS T42 SIGNAL (40TE) |
| 57 | K44 20DB/GY | CMP 1/1 SIGNAL |
| 58 | K915 20BR/PK | SENSOR GROUND |
| 59 | - | - |
| 60 | K957 20BK/OR | SENSOR GROUND |
| 61 | K157 20BR/OR | SAF SIGNAL |
| 62 | K922 20BR/DB | TP SENSOR GROUND |
| 63 | K122 20BR/DG | TP SIGNAL 2 |
| 64 | K22 20BR/OR | TP SIGNAL 1 |
| 65 | K942 20WT/BR | KS RETURN |
| 66 | T52 20DG/OR | INPUT SPEED SIGNAL (40TE) |
| 67 | - | - |
| 68 | - | - |
| 69 | - | - |
| 70 | K76 20BR/WT | CMP 1/1 CONTROL |
| 71 | - | - |
| 72 | K276 20DB/WT | CMP 1/2 CONTROL |
| 73 | K15 18DB/GY | COIL 4 CONTROL |
| 74 | K18 18DB/OR | COIL 3 CONTROL |
| 75 | K17 18DB/TN | COIL 2 CONTROL |
| 76 | K19 18DB/DG | COIL 1 CONTROL |
| 77 | T60 18YL/WT | OD CONTROL (40TE) |
| 78 | T41 20YL/DB | TRS T41 SIGNAL (40TE) |
| 79 | K24 20BR/LB | CKP SIGNAL |
| 80 | T54 20DG/GY | TRANSMISSION TEMPERATURE SIGNAL (40TE) |
| 81 | T3 20DG/DB | TRS T3 SIGNAL (40TE) |
| 82 | K900 20DB/LB | SENSOR GROUND |
| 83 | K2 20VT/OR | ECT 1 SIGNAL |
| 84 | K602 20YL/DB | MFV SIGNAL |
| 85 | K1 20VT/DG | MAP SIGNAL |
| 86 | G6 20VT/GY | EOP SIGNAL |
| 87 | T853 20YL/GY | SENSOR GROUND (40TE) |
| 88 | K42 20DB/YL | KS SIGNAL |
| 89 | T14 20DG/BR | OUTPUT SPEED SIGNAL (40TE) |
| 90 | T13 20DG/VT | SENSOR GROUND (40TE) |
| 91 | - | - |
| 92 | - | - |
| 93 | - | - |
| 94 | - | - |
| 95 | - | - |
| 96 | - | - |
