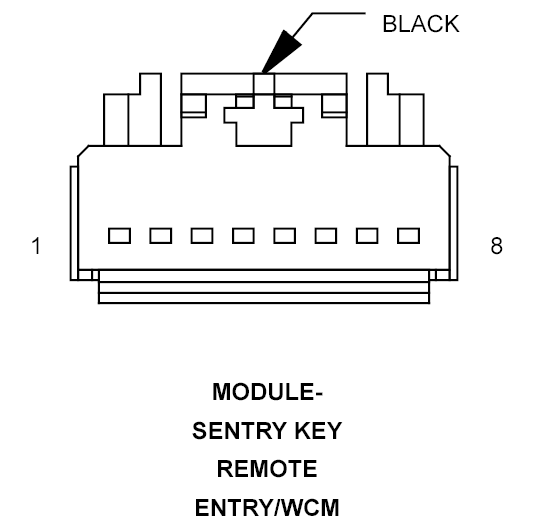

Sentry Key Remote Entry Module (Wireless Control Module) Connector End View
MODULE-SENTRY KEY REMOTE ENTRY/WCM - BLACK 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | G20 22VT/BR | IGNITION SWITCH SENSE |
| 2 | D508 20WT/GY | COM-LIN TIRE PRESSURE MONITOR LAN |
| 3 | F20 20PK | IGNITION SWITCH OUTPUT (RUN-START) |
| 4 | Z910 20BK | GROUND |
| 5 | A411 20RD | FUSED B(+) (I.O.D.) |
| 6 | D55 20WT/OR | CAN B BUS (+) |
| 7 | D54 20WT | CAN B BUS (-) |
| 8 | - | - |
