Speed Control Switch Connector End View

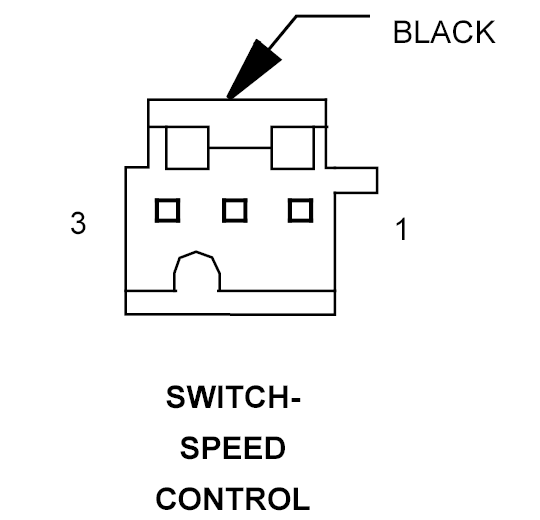

SWITCH-SPEED CONTROL - BLACK 3 WAY

GJS880455Courtesy of CHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 V72 20PK S/C SIGNAL 2
2 V71 20VT S/C SIGNAL 1
3 V937 20YL S/C SWITCH GROUND
