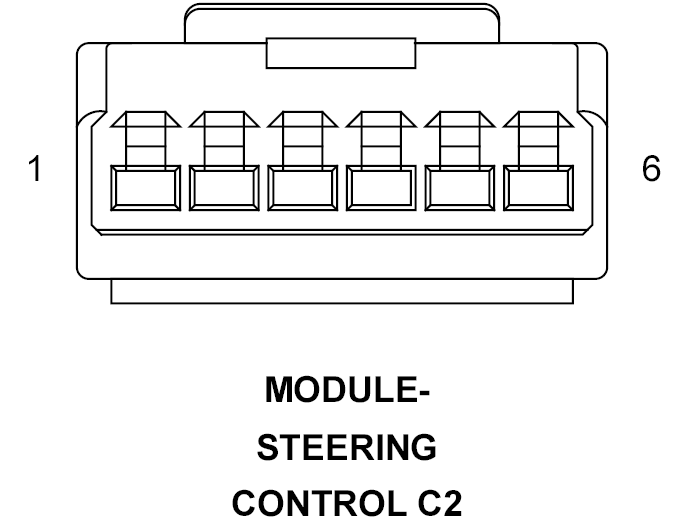

Steering Control Module Connector End View (C2)

MODULE-STEERING CONTROL C2 - 6 WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	X20 22GY/WT	RADIO CONTROL MUX
2	X920 22GY/OR	RADIO CONTROL MUX RETURN
3	X3 22DG/VT	HORN SWITCH SENSE
4	V72 20OR/VT	S/C SIGNAL 2
5	V937 20VT/BR	S/C SWITCH GROUND
6	V71 20VT/OR	S/C SIGNAL 1

MODULE-STEERING CONTROL C2 - 6 WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	X20 22GY/WT	RADIO CONTROL MUX
2	X920 22GY/OR	RADIO CONTROL MUX RETURN
3	X3 22DG/VT	HORN SWITCH SENSE
4	V72 20OR/VT	S/C SIGNAL 2
5	V937 20VT/BR	S/C SWITCH GROUND
6	V71 20VT/OR	S/C SIGNAL 1
