Charging System (Service Information): Generator: Installation: 2.7L

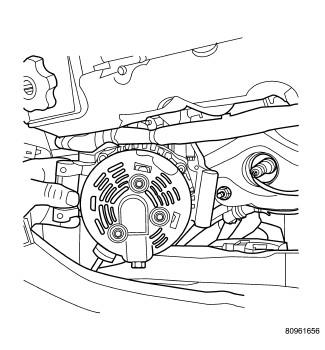

Fig 1: GENERATOR

Courtesy of CHRYSLER LLC

1. Install the generator.
2. Install the 2 upper bolts but do not tighten.

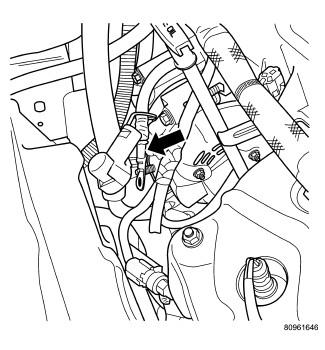

   Fig 2: GENERATOR BATTERY CABLE

   Courtesy of CHRYSLER LLC
3. Connect the B+ terminal and field connectors.
4. Install the lower bolt and tighten to 27 N.m (20 ft. lbs.).
5. Install the accessory drive belt back on the generator.
6. Tighten the 2 upper mounting bolts to 27 N.m (20 ft. lbs.).
7. Connect the negative battery cable.
