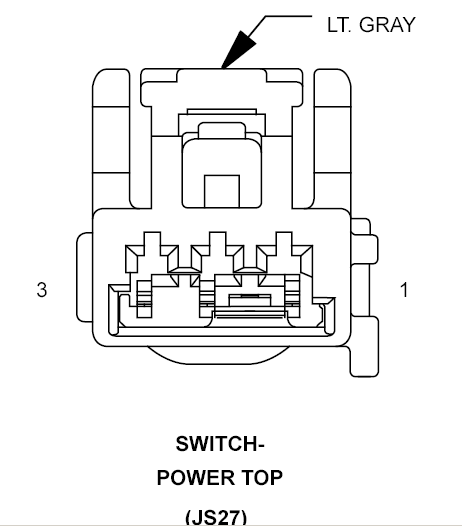

Power Top Switch (Convertible) Connector End View
SWITCH-POWER TOP - LT. GRAY 3 WAY (JS27)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
E12 20OR/GY |
PANEL LAMPS DRIVER |
| 2 |
Q999 20OR |
POWER TOP SWITCH RETURN |
| 3 |
Q31 20OR/DB |
POWER TOP SWITCH MUX |
