Diagnostic Test

DTC IS ACTIVE
NOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with this test.
1. Start the engine and allow it to reach normal operating temperature.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.
2. With the scan tool, select View DTCs.
  Is the status Active for this DTC?

  Yes
  - Go to step 2
  No
  - Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
(F855) 5-VOLT SUPPLY CIRCUIT VOLTAGE

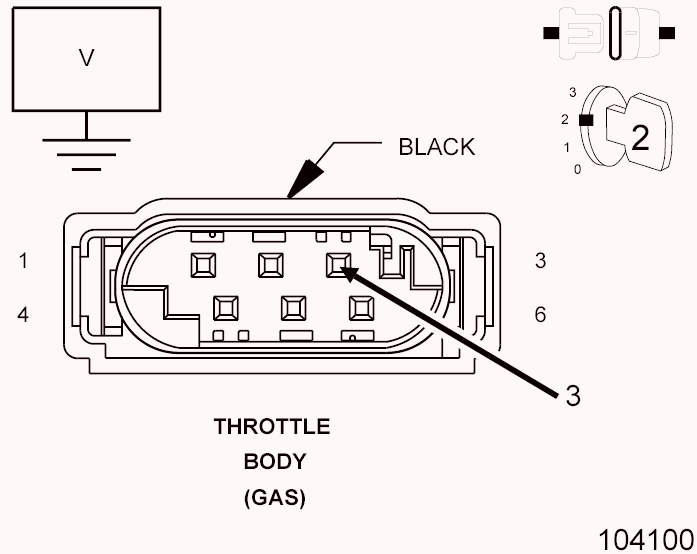

Fig 1: Checking 5-Volt Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Throttle Body connector.
3. Turn the ignition on.
4. Measure the voltage of the (F855) 5-Volt Supply circuit in the Throttle Body harness connector.
  Is the voltage between 4.5 and 5.5 volts?

  Yes
  - Go to step 3
  No
  - Go to step 9
(K22) TP SIGNAL 1 CIRCUIT VOLTAGE

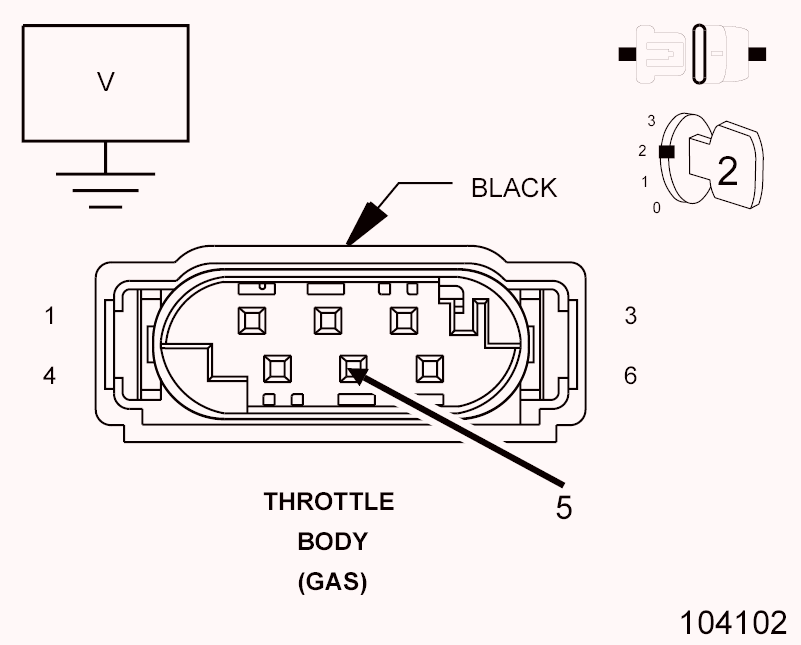

Fig 2: Checking TP Sensor Circuit
Courtesy of CHRYSLER LLC
1. Measure the voltage of the (K22) TP Signal 1 circuit in the Throttle Body harness connector.
  Is the voltage between 4.5 and 5.5 volts?

  Yes
  - Go to step 4
  No
  - Go to step 13
(K122) TP SIGNAL 2 CIRCUIT VOLTAGE

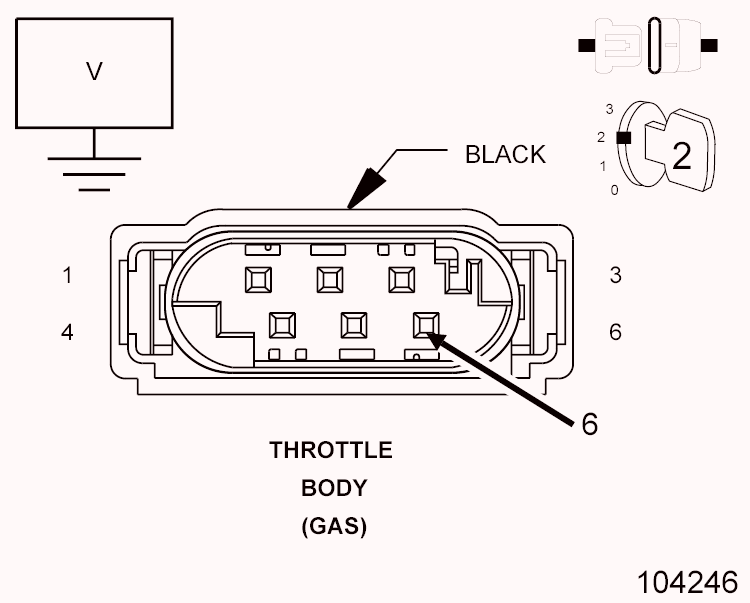

Fig 3: Checking TP Sensor Circuit
Courtesy of CHRYSLER LLC
1. Measure the voltage of the (K122) TP Signal 2 circuit in the Throttle Body harness connector.
  Is the voltage between 4.5 and 5.5 volts?

  Yes
  - Go to step 5
  No
  - Go to step 17
(K922) TP SENSOR GROUND CIRCUIT TEST

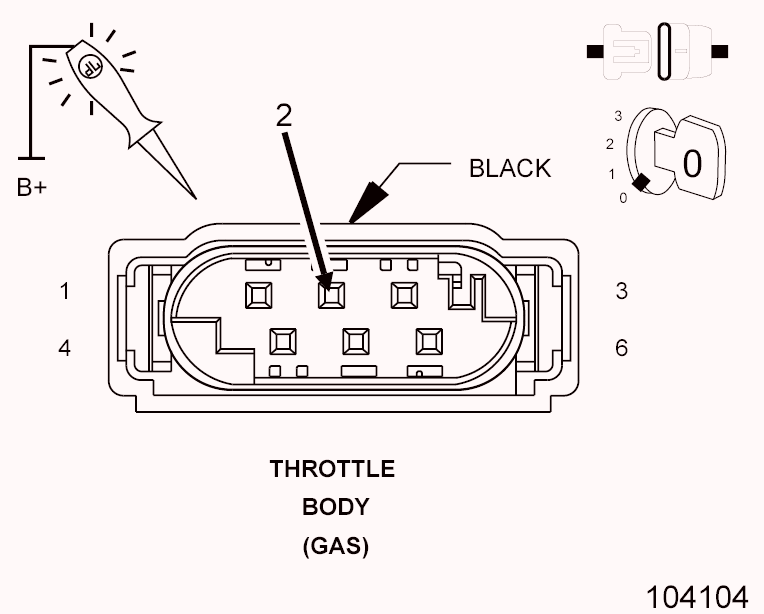

Fig 4: Checking TP Ground Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Using a 12 volt test light connected to 12 volts, check the (K922) TP Sensor Ground circuit in the Throttle Body harness connector.
  NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

  Is the test light illuminated and bright?

  Yes
  - Go to step 6
  No
  - Go to step 21

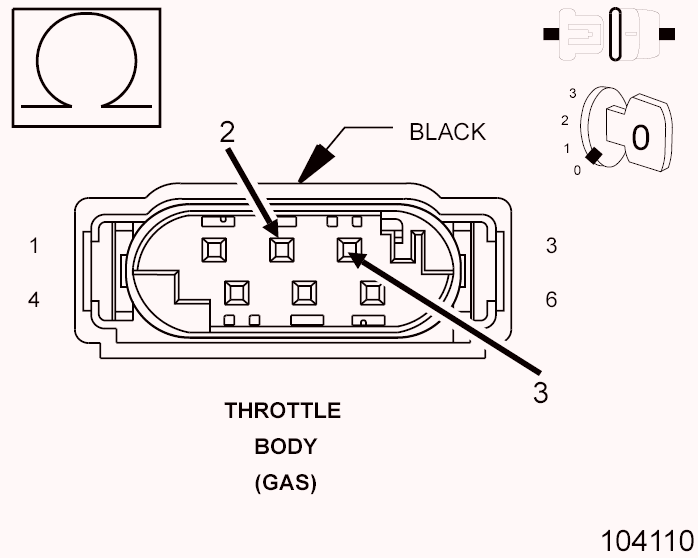

(F855) 5-VOLT SUPPLY CIRCUIT SHORTED TO THE (K22) TP SIGNAL 1 CIRCUIT

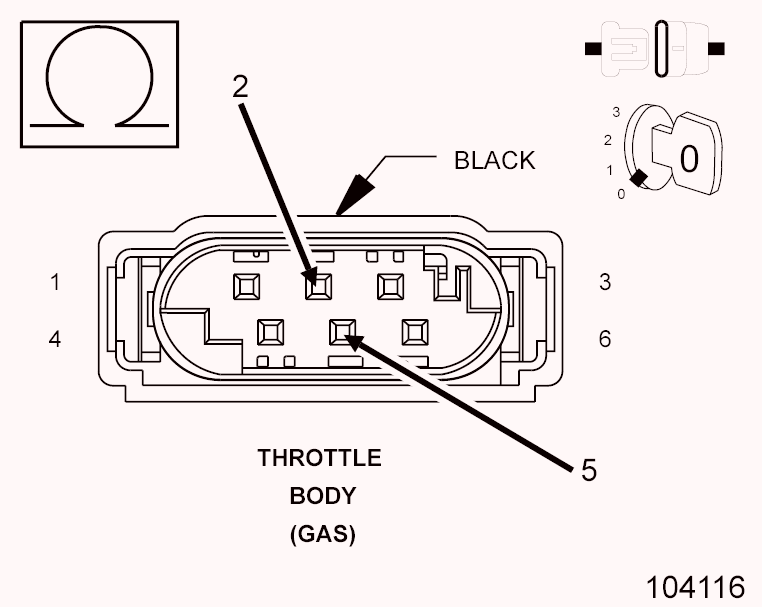

Fig 5: Checking 5-Volt Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (F855) 5-Volt Supply circuit and the (K22) TP Signal 1 circuit in the Throttle Body harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 7
  No
  - Repair the (F855) 5-Volt Supply circuit for a short to the (K22) TP Signal 1 circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .

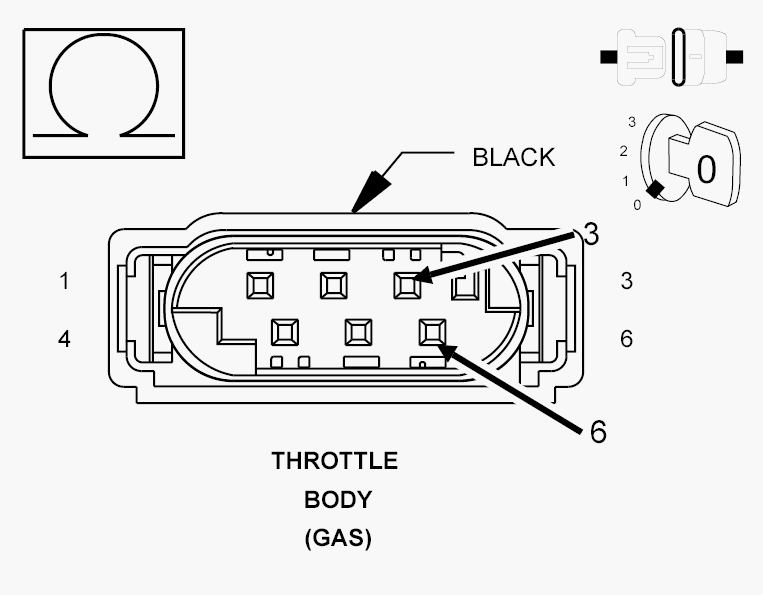

(F855) 5-VOLT SUPPLY CIRCUIT SHORTED TO THE (K122) TP SIGNAL 2 CIRCUIT

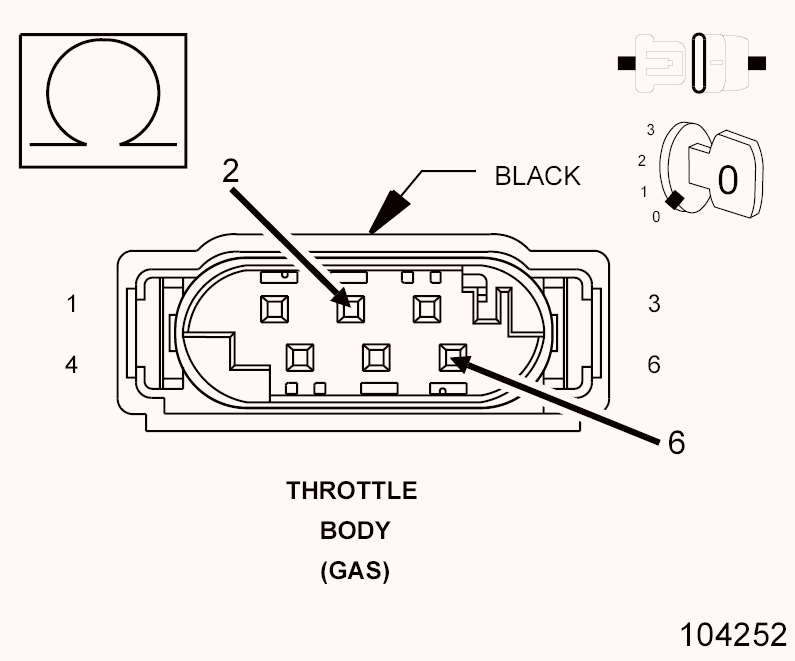

Fig 6: Checking 5-Volt Supply Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (F855) 5-Volt Supply circuit and the (K122) TP Signal 2 circuit in the Throttle Body harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 8
  No
  - Repair the (F855) 5-Volt Supply circuit for a short to the (K122) TP Signal 2 circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
THROTTLE BODY
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Inspect the Throttle Body for any condition that would result in an incorrect signal, such as damage or contamination.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace the Throttle Body.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(F855) 5-VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

Fig 7: Checking 5-Volt Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) connector.
3. Turn the ignition on.
4. Measure the voltage of the (F855) 5-Volt Supply circuit in the Throttle Body harness connector.
  Is there any voltage present?

  Yes
  - Repair the (F855) 5-Volt Supply circuit for a short to voltage.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 10

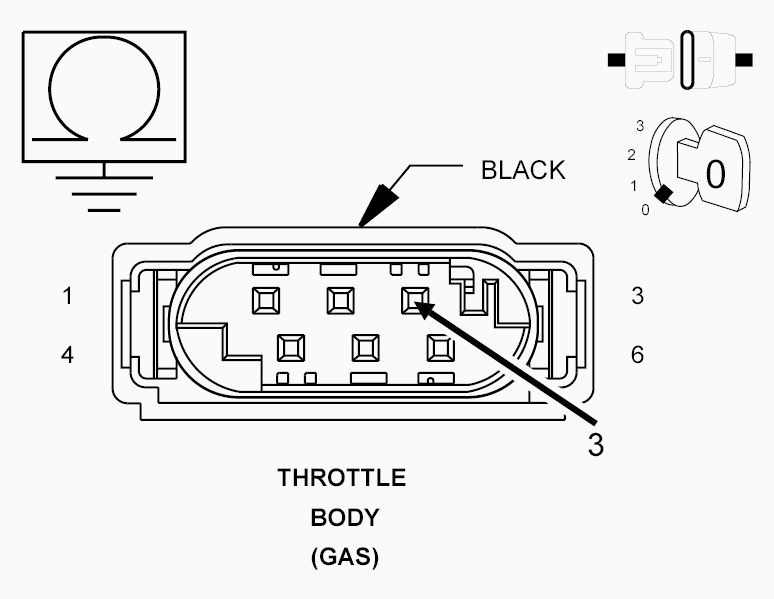

(F855) 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND

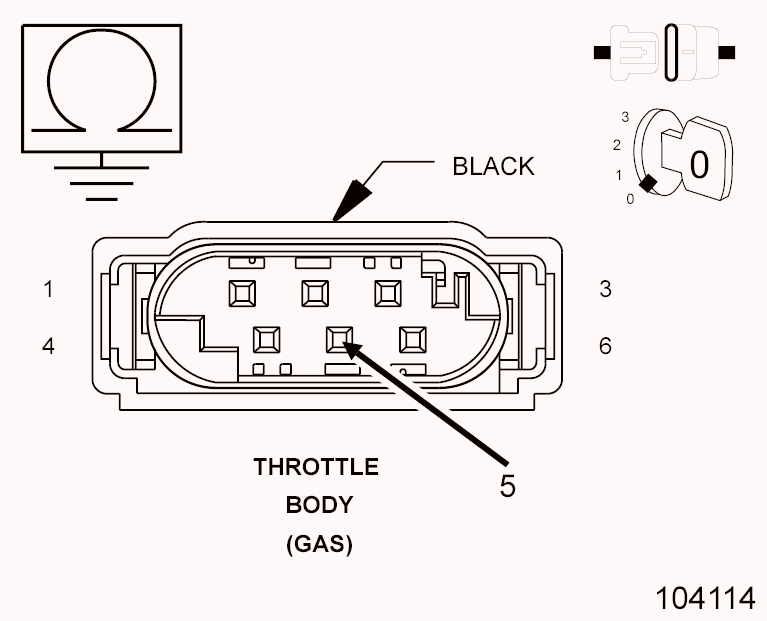

Fig 8: Checking 5-Volt Supply Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance between ground and the (F855) 5-Volt Supply circuit in the Throttle Body harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 11
  No
  - Repair the (F855) 5-Volt Supply circuit for a short to ground.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(F855) 5-VOLT SUPPLY CIRCUIT SHORTED TO THE (K922) TP SENSOR GROUND CIRCUIT

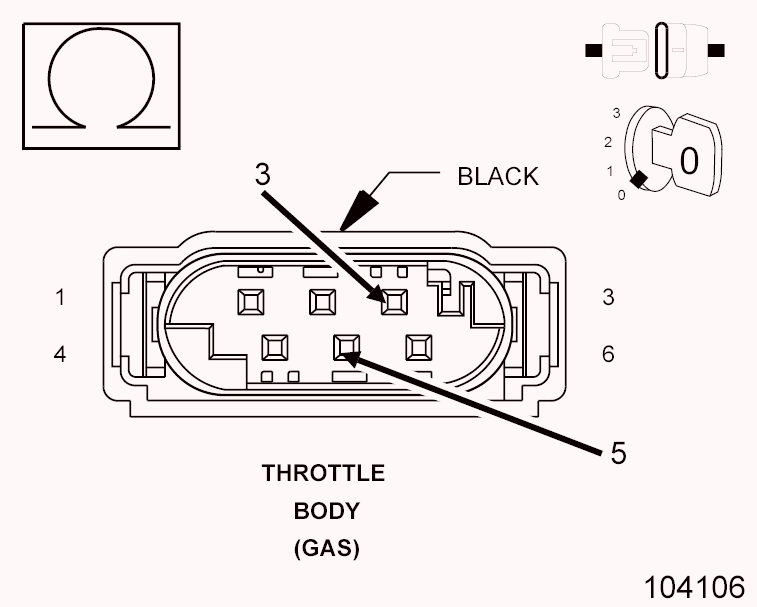

Fig 9: Checking 5-Volt Supply Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (F855) 5-Volt Supply circuit and the (K922) TP Sensor Ground circuit in the Throttle Body harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 12
  No
  - Repair the (F855) 5-Volt Supply circuit for a short to the (K922) TP Sensor Ground circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .

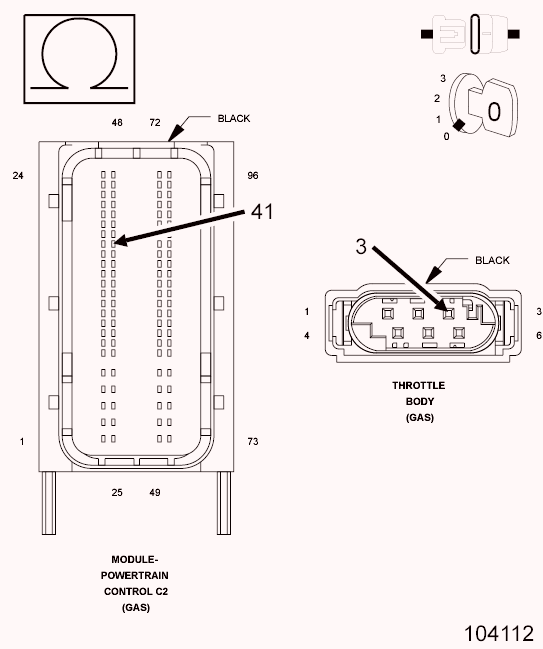

(F855) 5-VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

Fig 10: Checking 5-Volt Supply Circuit
Courtesy of CHRYSLER LLC

NOTE: When checking circuits at the Powertrain Control Module (PCM), be careful not to damage or distort the connector terminals. Improper measurement technique could result in poor pin to terminal contact.
1. Measure the resistance of the (F855) 5-Volt Supply circuit between the Throttle Body harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 22
  No
  - Repair the (F855) 5-Volt Supply circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE

Fig 11: Checking TP Sensor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) connector.
3. Turn the ignition on.
4. Measure the voltage of the (K22) TP Signal 1 circuit in the Throttle Body harness connector.
  Is there any voltage present?

  Yes
  - Repair the (K22) TP Signal 1 circuit for a short to voltage.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 14
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO GROUND

Fig 12: Checking TP Signal Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance between ground and the (K22) TP Signal 1 circuit in the Throttle Body harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 15
  No
  - Repair the (K22) TP Signal 1 circuit for a short to ground.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO (K922) TP SENSOR GROUND CIRCUIT

Fig 13: Checking TP Signal Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K22) TP Signal 1 circuit and the (K922) TP Sensor Ground circuit in the Throttle Body harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 16
  No
  - Repair the (K22) TP Signal 1 circuit for a short to the (K922) TP Sensor Ground circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .

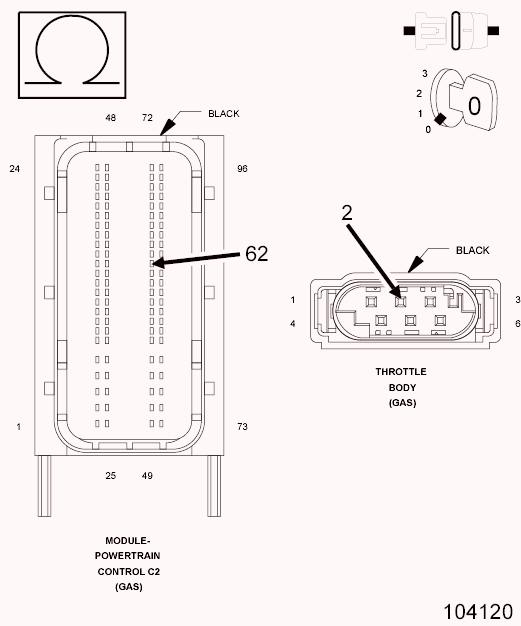

(K22) TP SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE

Fig 14: Checking TP Signal Circuit
Courtesy of CHRYSLER LLC

NOTE: When checking circuits at the Powertrain Control Module (PCM), be careful not to damage or distort the connector terminals. Improper measurement technique could result in poor pin to terminal contact.
1. Measure the resistance of the (K22) TP Signal 1 circuit between the Throttle Body harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 22
  No
  - Repair the (K22) TP Signal 1 circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE

Fig 15: Checking TP Sensor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) connector.
3. Turn the ignition on.
4. Measure the voltage of the (K122) TP Signal 2 circuit in the Throttle Body harness connector.
  Is there any voltage present?

  Yes
  - Repair the (K122) TP Signal 2 circuit for a short to voltage.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 18

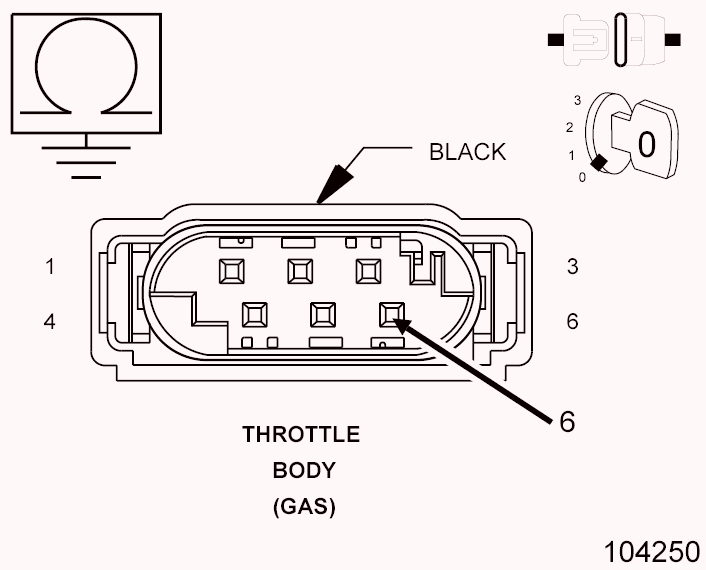

(K122) TP SIGNAL 2 CIRCUIT SHORTED TO GROUND

Fig 16: Checking TP Sensor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance between ground and the (K122) TP Signal 2 circuit in the Throttle Body harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 19
  No
  - Repair the (K122) TP Signal 2 circuit for a short to ground.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO (K922) TP SENSOR GROUND CIRCUIT

Fig 17: Checking TP Sensor Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K122) TP Signal 2 circuit and the (K922) TP Sensor Ground circuit in the Throttle Body harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 20
  No
  - Repair the (K122) TP Signal 2 circuit for a short to the (K922) TP Sensor Ground circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .

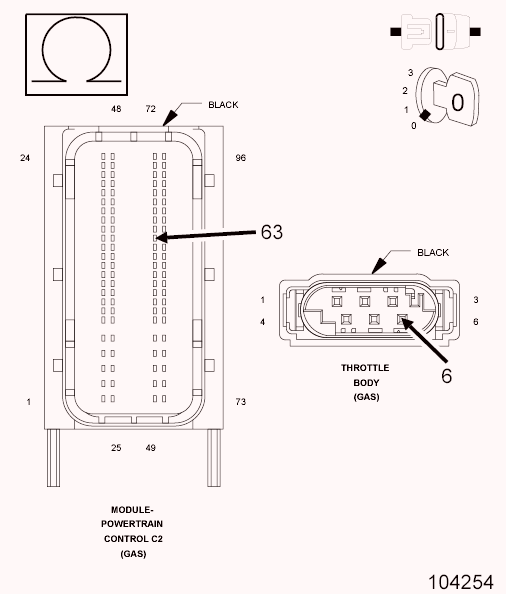

(K122) TP SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE

Fig 18: Checking TP Sensor Circuit
Courtesy of CHRYSLER LLC

NOTE: When checking circuits at the Powertrain Control Module (PCM), be careful not to damage or distort the connector terminals. Improper measurement technique could result in poor pin to terminal contact.
1. Measure the resistance of the (K122) TP Signal 2 circuit between the Throttle Body harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 22
  No
  - Repair the (K122) TP Signal 2 circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .

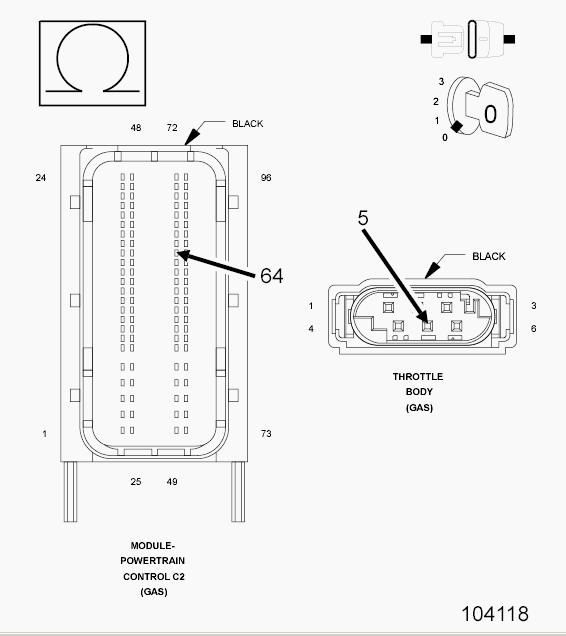

(K922) TP SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

Fig 19: Checking Ground Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) connector.
  NOTE: When checking circuits at the Powertrain Control Module (PCM), be careful not to damage or distort the connector terminals. Improper measurement technique could result in poor pin to terminal contact.
3. Measure the resistance of the (K922) TP Sensor Ground circuit between the Throttle Body harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 22
  No
  - Repair the circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Refer to any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
