DTCS P2123 To P2307 - GPEC
>>
P2270-O2 Sensor 1/2 Signal Biased Lean
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P2270-O2 Sensor 1/2 Signal Biased Lean: Notes

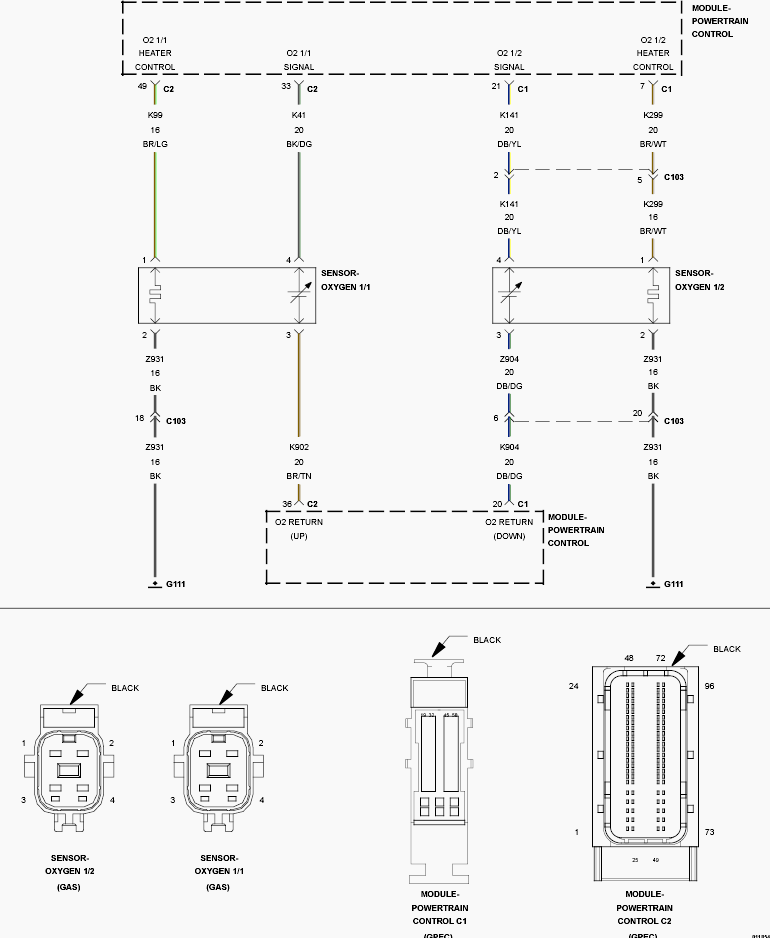

Fig 1: Oxygen Sensor Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
