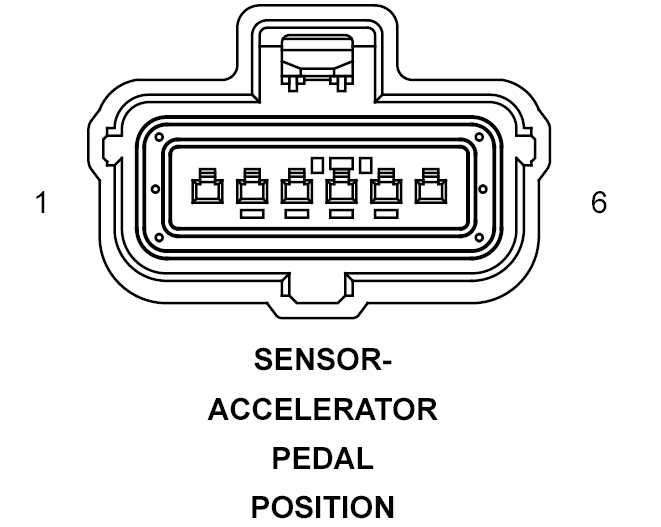

Accelerator Pedal Position Sensor Connector End View
SENSOR-ACCELERATOR PEDAL POSITION - 6 WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K29 20WT/BR |
APP SIGNAL 2 |
| 2 |
K400 20BR/VT |
APP SENSOR GROUND 2 |
| 3 |
F856 20YL/PK |
5-VOLT SUPPLY |
| 4 |
K23 20BR/WT |
APP SIGNAL 1 |
| 5 |
K167 20BR/YL |
APP SENSOR GROUND 1 |
| 6 |
F855 20PK/YL |
5-VOLT SUPPLY |
