Air Flow Sensor (2.4L PZEV) Connector End View

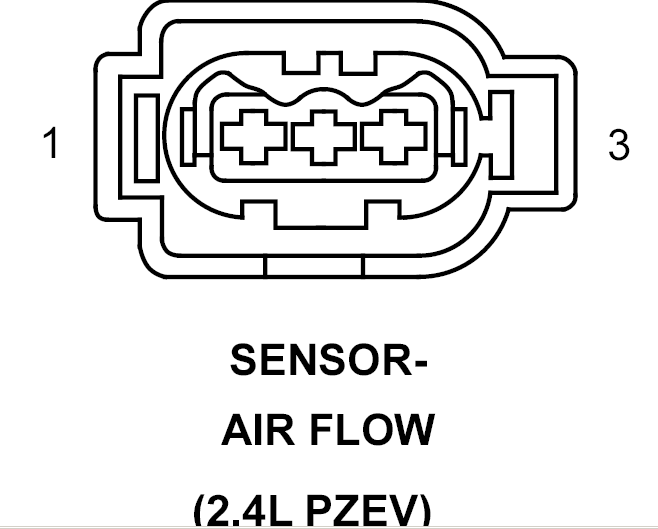

SENSOR-AIR FLOW - BLACK 3 WAY (2.4L PZEV) FEMALE

GJS880351Courtesy of CHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K957 20BK/LB SENSOR GROUND
2 F343 16DG/RD FUSED MAIN RELAY OUTPUT
3 K157 20DB SAF SIGNAL
