HEATER, Engine Block: Installation: 3.5L

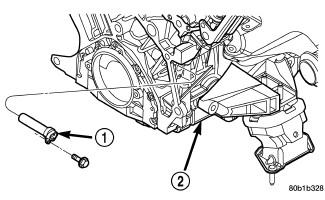

| 1 - BLOCK HEATER |
| 2 - ENGINE - RIGHT SIDE |
- Thoroughly clean cylinder block heater cavity.
- Insert heater assembly into block such that mounting hole is located below heater terminals.
- Install mounting screw and tighten to 12 N.m (105 in. lb.).CAUTION: To prevent damage, the power cord must be secured in its retainer clips, and not positioned so it could contact linkages or exhaust manifolds.
- Attach power cord to heater.
- Lower vehicle.
