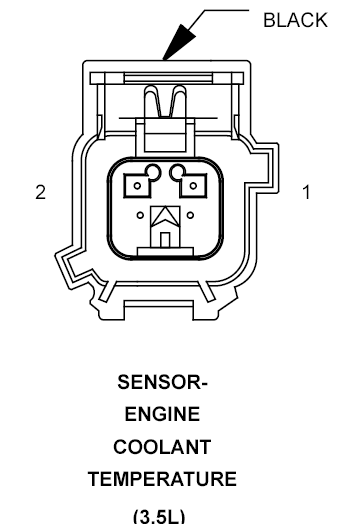

Engine Coolant Temperature Sensor (3.5L) Connector End View
SENSOR-ENGINE COOLANT TEMPERATURE - BLACK 2 WAY (3.5L)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K900 20DB/LB |
SENSOR GROUND |
| 2 |
K2 20VT/OR |
ECT SIGNAL |
