Charging System (Service Information): Generator: Installation: 2.0L/2.4L

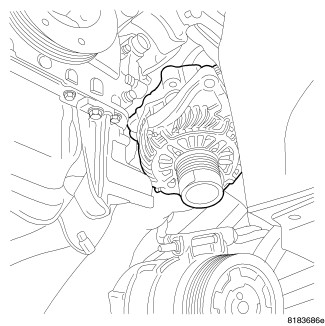

Fig 1: Removing/Installing Generator

Courtesy of CHRYSLER LLC

1. Move the A/C compressor to the side to install the generator.
   Fig 2: ROTATE GENERATOR

   Courtesy of CHRYSLER LLC
2. Rotate the generator and set it in place.
   Fig 3: BATTERY STUD LOCATION

   Courtesy of CHRYSLER LLC
3. Make sure the battery terminal (1) is in front of the A/C line (2).
   Fig 4: LOWER MOUNTING BOLT LOOSE

   Courtesy of CHRYSLER LLC
4. Loosely install the lower mounting bolt.
   Fig 5: UPPER MOUNTING BOLT

   Courtesy of CHRYSLER LLC
5. Loosely install the upper mounting bolt.
6. Tighten the bolts to 54 N.m (40 ft. lbs.).
   Fig 6: BATTERY CABLE CONNECTION

   Courtesy of CHRYSLER LLC
7. Install the B+ terminal nut and wire and tighten to 10 N.m (88.5 in. lbs.).
   Fig 7: FIELD CONNECTION

   Courtesy of CHRYSLER LLC
8. Plug in the field circuit to the generator.
   Fig 8: IDLER PULLEY REMOVAL/INSTALL

   Courtesy of CHRYSLER LLC
9. Install idler pulley and tighten the bolt.
10. Install the serpentine belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Installation
11. Install the splash shield.
    Fig 9: LOWER AIR DAM

    Courtesy of CHRYSLER LLC
12. Install the lower air dam.
13. Lower the vehicle.
14. Connect the negative battery cable.
