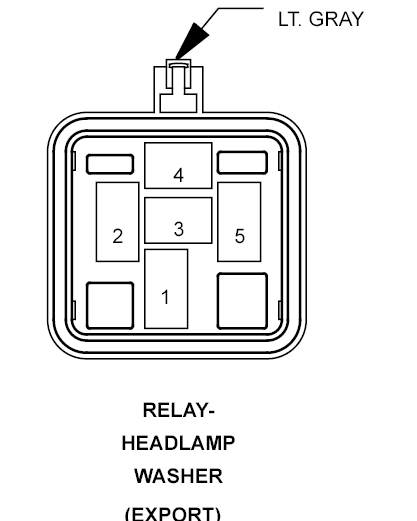

Headlamp Washer Relay (Export) Connector End View
RELAY-HEADLAMP WASHER - LT. GRAY 5 WAY (EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A937 14RD |
FUSED B(+) |
| 2 |
W24 20BR/OR |
HEADLAMP WASHER RELAY CONTROL |
| 3 |
- |
- |
| 4 |
W23 14BR/OR |
HEADLAMP WASHER RELAY OUTPUT |
| 5 |
F936 20PK/YL |
FUSED IGNITION SWITCH OUTPUT (RUN) |
