Steering Column

  1. If the steering column is being replaced, assemble components on the steering column as necessary before column installation. See Steering/Column - Assembly
    Fig 1: COLUMN MOUNTING
    GC0082510Courtesy of CHRYSLER LLC
    NOTE: When installing a tilt column, do not release the tilt lever from the locked position until after the column is installed on the instrument panel.
  2. Install the steering column through the steering column opening.
  3. Raise the column onto the mounting studs and install the three mounting nuts (1) on the studs and the one bolt (2).
    Fig 2: COLUMN TIGHTENING SEQUENCE
    GC0082512Courtesy of CHRYSLER LLC
    NOTE: When tightening the fasteners in the following step, make sure there is no gap between the column flange and the instrument panel support at bolt (4).
  4. Starting with the left upper nut and proceeding in a clockwise tightening sequence ending at the bolt (left lower), tighten all four mounting fasteners to 28 N.m (21 ft. lbs.).
    Fig 3: STEERING GEAR PINION SHAFT
    GC0084367Courtesy of CHRYSLER LLC
  5. Verify the front wheels of vehicle are in the STRAIGHT-AHEAD position.
  6. Collapse the intermediate shaft (2). Center it over the steering gear pinion shaft (4), lining up the ends, then slide the intermediate shaft onto the steering gear pinion shaft. Do not install the intermediate shaft coupling bolt (3) at this time. The bolt can be more easily installed in a later step.
    Fig 4: MULTI-FUNCTION SWITCH CONNECTORS
    GC0082509Courtesy of CHRYSLER LLC
  7. Connect the wiring harness connectors (2) to the Steering Column Control Module (SCCM) (1).
  8. Connect any other the wiring harness connectors.

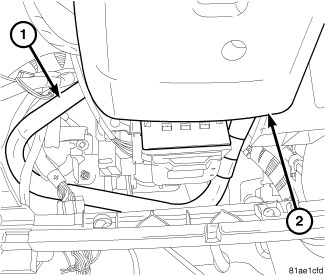

    Fig 5: CLUTCH PEDAL BLOCKER
    GC0120831Courtesy of CHRYSLER LLC
  9. If equipped, Install the clutch pedal blocker (1) using three mounting screws.

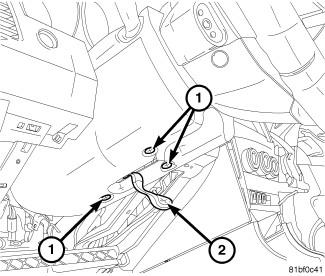

    Fig 6: LOWER SHROUD MOUNTING SCREWS
    GC0122197Courtesy of CHRYSLER LLC
  10. Push the tilt lever (2) downward (released position).
  11. Install the lower shroud (2) over the tilt lever and onto the column.
  12. Install the upper shroud onto the lower shroud, clipping the shrouds to one another.
  13. Install the three screws (1) attaching the lower shroud to the steering column.
  14. Position the column tilt (5) at the full-upward position.
  15. Push the tilt lever upward, locking the column in place.
    Fig 7: AIR BAG REMOVAL
    GC0082507Courtesy of CHRYSLER LLC
    CAUTION: When installing the steering wheel, the clockspring must be centered in its travel to avoid overextending the clockspring inner parts, causing the clockspring to become inoperative. If removed and handled properly using the correct procedures, it should be in the "centered" position. If there is any question as to whether the clockspring is in the "centered" position of travel, perform the clockspring centering procedure before proceeding. Refer to Restraints/CLOCKSPRING - Standard Procedure .
  16. Install the steering wheel (2) and the retaining bolt (4). Tighten the steering wheel retaining bolt to 50 N.m (37 ft. lbs.). See Steering/Column/WHEEL, Steering - Installation .
    Fig 8: STEERING WHEEL WIRING
    GC0082508Courtesy of CHRYSLER LLC
  17. Connect the wiring connector (2) at the clockspring.
    Fig 9: AIR BAG REMOVAL
    GC0082507Courtesy of CHRYSLER LLC
  18. Install the driver airbag (3). Refer to Restraints/AIR BAG, Driver - Installation
    Fig 10: STEERING GEAR PINION SHAFT
    GC0084367Courtesy of CHRYSLER LLC
  19. From center, rotate the steering wheel to the right approximately 90° or until the shaft coupling pinch bolt (3) can be easily installed.
  20. Install the intermediate shaft coupling bolt (3). Tighten the bolt to 42 N.m (31 ft. lbs.).
  21. Reposition the floor carpet (1) in place.
  22. Straighten the steering wheel to STRAIGHT-AHEAD position.
    WARNING: Do not connect the battery ground cable without following the proper procedure as indicated in the following step. Personal injury or death may result if the Airbag System Test is not performed first.
  23. Reconnect the battery ground terminal following the Airbag System Test found in Restraints. Refer to Restraints - Diagnosis and Testing

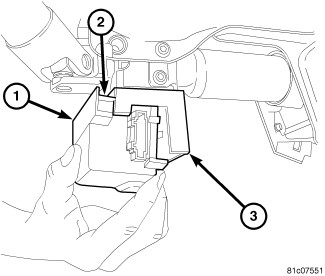

    Fig 11: SHAFT LOCK MODULE INSTALLATION
    GC0118568Courtesy of CHRYSLER LLC
  24. If the steering column being installed requires the installation of a shaft lock module, perform the following:
    1. If not present, insert the ignition key into the ignition lock cylinder. This will move the shaft lock module locking bolt to the unlocked position. Leave the key in the lock cylinder while the shaft lock module service is being completed.
    2. Make sure the wiring harness connector is properly connected to the module.
    3. Align the engagement and slide tabs (2) on the shaft lock module housing (1) with the slots and channels in the mounting bracket (3) on the steering column.
    4. Carefully slide the module toward the top (steering wheel end) of the column until it is in mounted position and the spring clips on the module have engaged the bracket, locking it in place.
    NOTE: If a NEW module has been installed, a NEW SKREEM (WCM) must also be installed, then a diagnostic scan tool MUST be used to initialize the new module before the vehicle can be operated. Refer to Electrical - Vehicle Theft Security/Vehicle Theft Security - Standard Procedure .

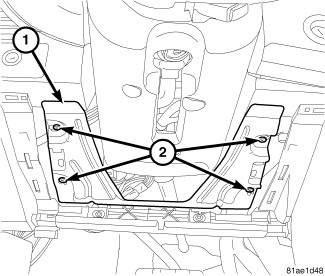

    Fig 12: STEERING COLUMN COVER REINFORCEMENT
    GC0082691Courtesy of CHRYSLER LLC
  25. Install the steering column cover reinforcement (1) using the four mounting screws (2).
  26. Install the steering column opening cover. Refer to Body/Instrument Panel/COVER, Steering Column Opening - Installation
  27. Test the operation of the all column mounted components. If applicable, reset the radio and the clock as necessary.
  28. Road test the vehicle to ensure proper operation of the steering system.
