Occupant Restraint Controller Jumper Harness - Installation

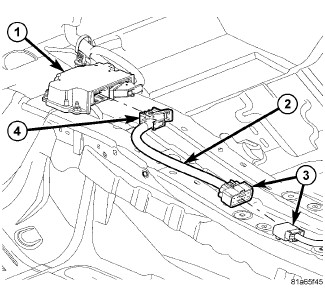

ORC JUMPER HARNESS





1. Connect the ORC jumper harness (2) to the body harness (3).
2. Connect the ORC jumper harness connector (4) to the ORC (1).
3. Install the center console Shifter Housing - Installation.

WARNING: Do not connect the battery negative cable Testing and Inspection . Serious or fatal injury may result if the system test is not performed first.
