Removal

2.7L





1. Disconnect and isolate the negative battery cable.

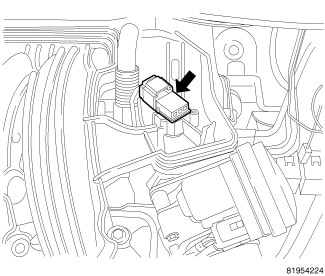

2. Disconnect the electrical connector from the MAP sensor.

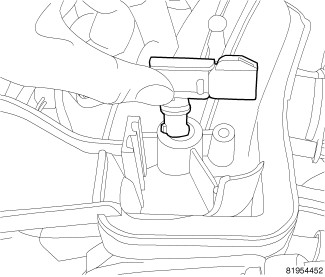

3. Turn sensor counterclockwise.





4. Lift sensor to remove.
