Installation

3.5L

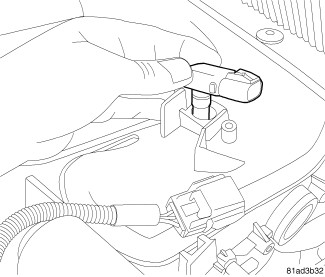

1. Install sensor.

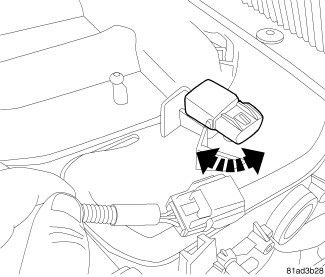

2. Rotate sensor into position.

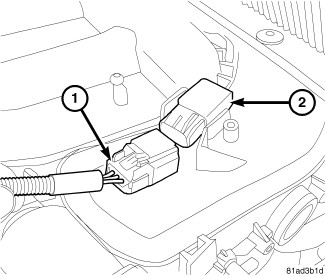

3. Attach electrical connector (1) to sensor (2).
4. Connect negative battery cable, tighten nut to 5 Nm (45 in. lbs.).
