Module - Occupant Restraint Controller C1-A






Connector - (BODY) 36 WAY

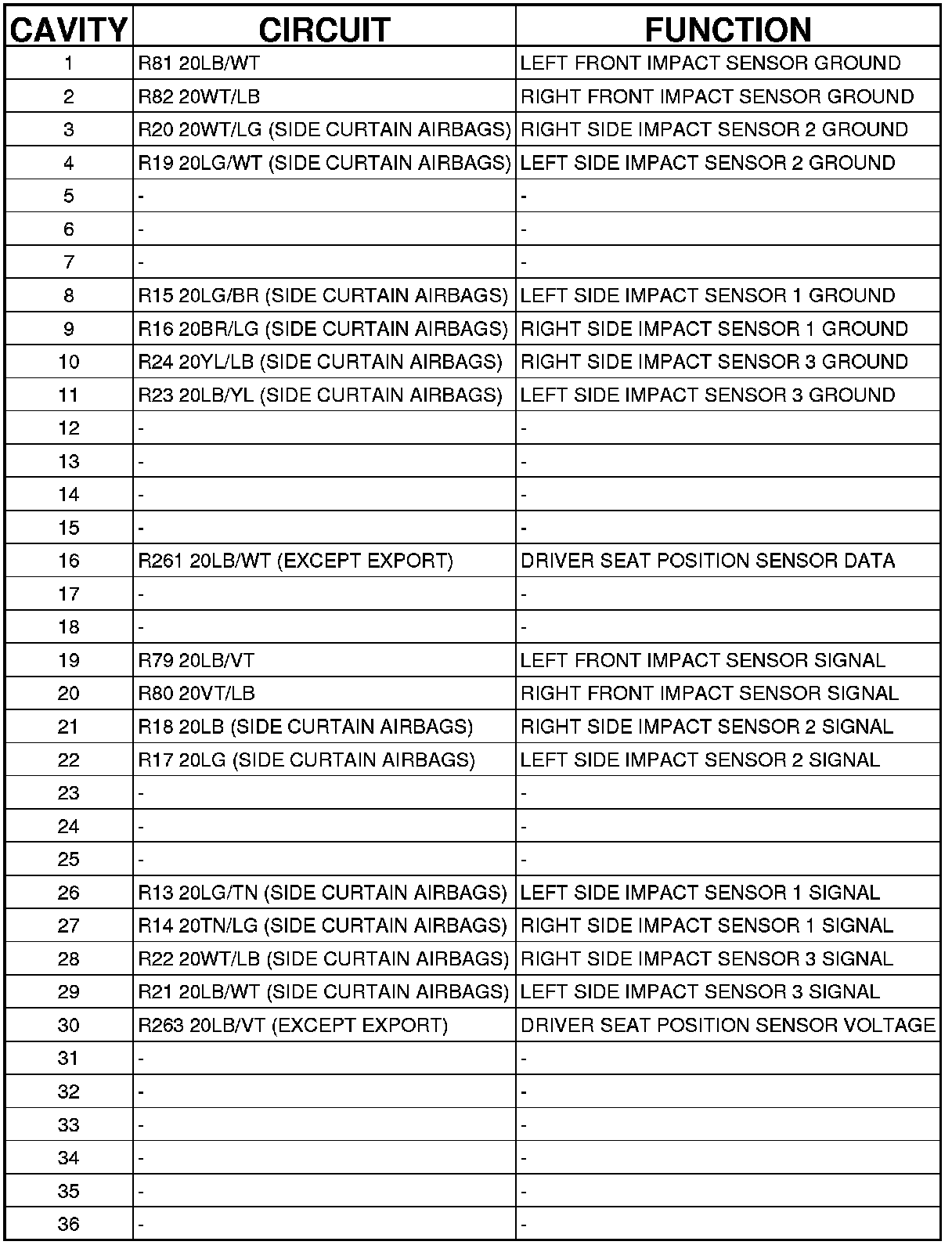

MODULE-OCCUPANT RESTRAINT CONTROLLER - (BODY) 36 WAY
