Totally Integrated Power Module C3 (Front End Lighting) 26 Way

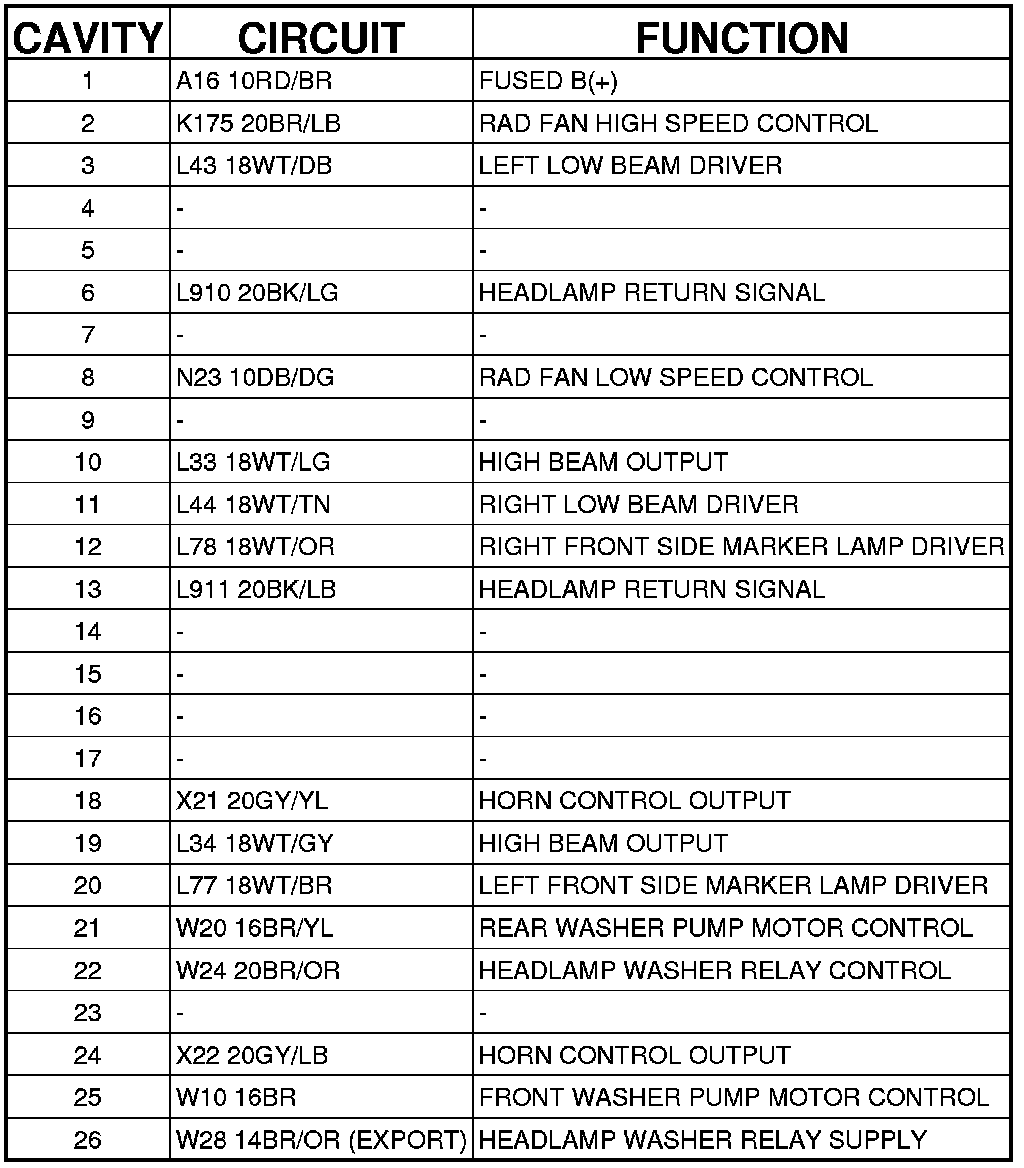

Connector C3 - (FRONT END LIGHTING) 26 WAY




C3 TIPM - (FRONT END LIGHTING) 26 WAY
