Repair and Diagnosis
>>
Steering
>>
Steering Control Systems
>>
Steering Control Module (SCM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B2332-Horn Switch Input Circuit/Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

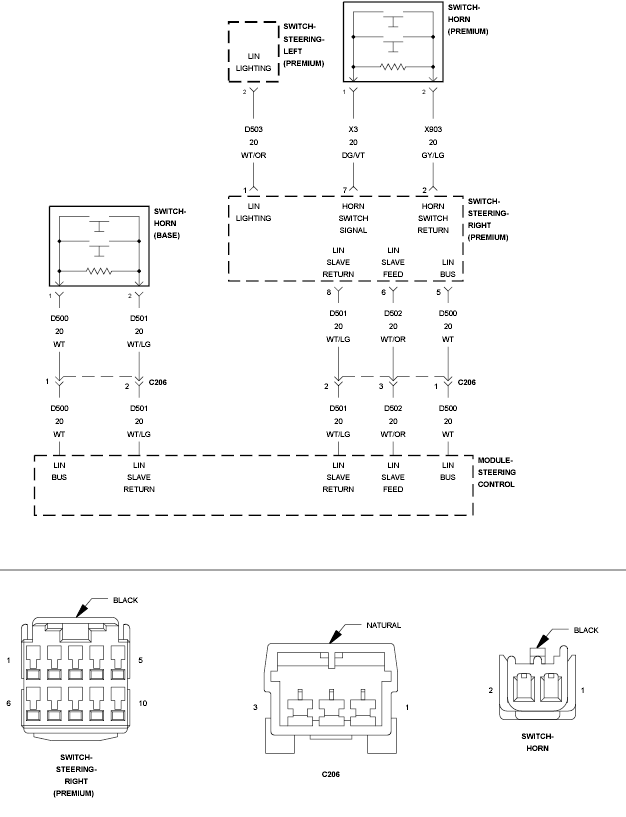

Fig 1: Horn Switch Input Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
