Steering Control Module (SCM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
U0019-Can B Bus Circuit
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

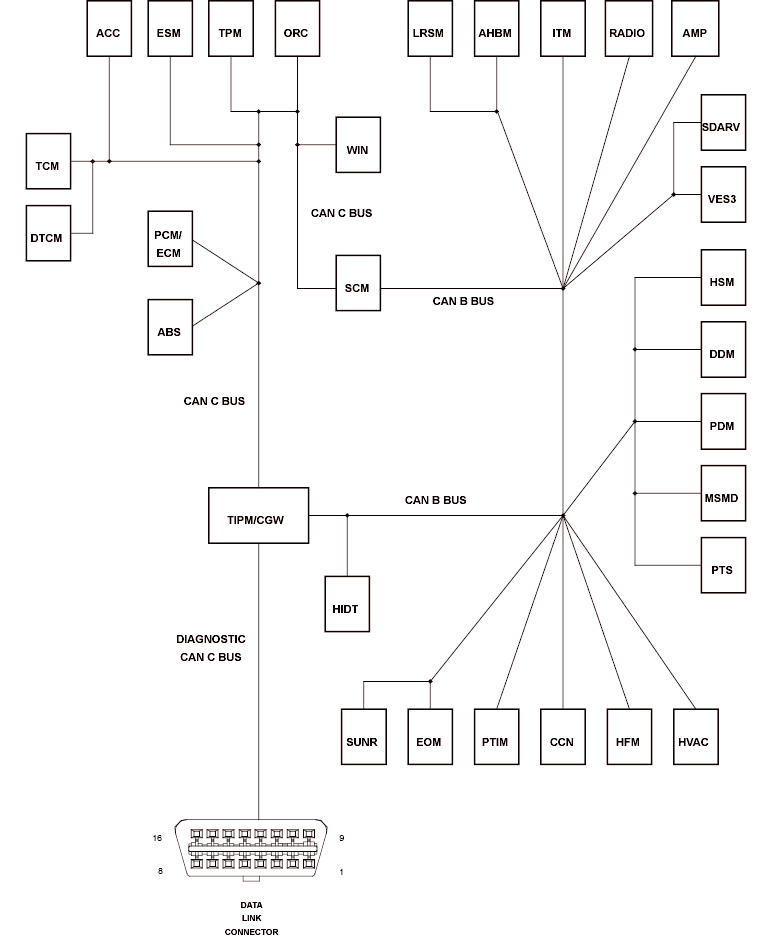

Fig 1: CAN BUS Modules Circuit Schematic
