Engine Coolant Temperature Sensor - Installation

3.6L ENGINE





1. Apply MOPAR(TM) thread sealant with PFTE part number 04318034 to sensor threads.

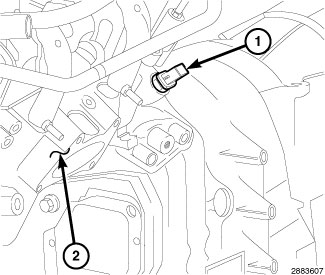

2. Install sensor (1) to cylinder head.
3. Tighten sensor to 11 Nm (8 ft. lbs.) torque.
4. Connect electrical connector to sensor.
5. Replace any lost engine coolant. Service and Repair.
