Lever, Gearshift: Installation: Assembly
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

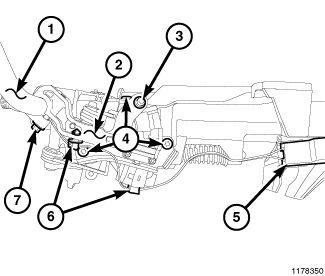

- Position the gearshift lever assembly (2), install the retaining screws and tighten to 12 N.m (105 in. lbs.).
- Connect the shift cable to the lever (2).
- Connect the gearshift harness connector (5).
- Ensure the gear shift lever and transmission are in the PARK position and snap the cable adjust clip in place.
- Install the upper and lower column shrouds, steering column opening cover, and reinforcement. Refer to SHROUD, STEERING COLUMN, INSTALLATION .
- Connect the negative battery cable.
