Standard Procedure - Hoisting: Notes

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

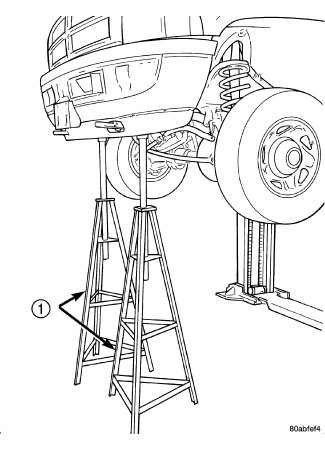

Fig 1: Safety Stands
GC0091732Courtesy of CHRYSLER GROUP, LLC
1 - SAFETY STANDS

Refer to the Owner's Manual for emergency vehicle lifting procedures.

WARNING:

The hoisting and jack lifting points provided are for a complete vehicle. When a chassis or drivetrain component is removed from a vehicle, the center of gravity is altered making some hoisting conditions unstable. Properly support or secure vehicle to hoisting device when these conditions exist.
