Door Module - Installation

INSTALLATION

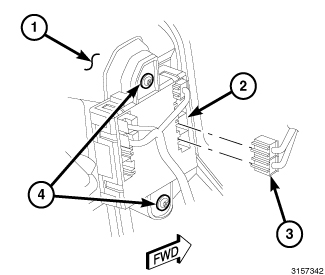

1. Position the door control module (2) to the front door hardware module carrier (1).
2. Install and tighten the two screws (4) that secure the door control module to the front door hardware module carrier. Tighten the screws securely.
3. Reconnect each of the electrical connectors (3) to the connector receptacles of the door control module.
4. Reinstall the trim panel to the inside of the front door. Front Door Trim Panel - Installation.
5. Reconnect the battery negative cable.
6. The Clear/Relearn procedure should be performed following service of a door control module so that the module can learn the correct hard stops of the power window regulator. Programming and Relearning.
